Highlight
At070tn83 800x480 LCD display
,Innolux 7 inch touch tft lcd
,LCD t con board 800x480
-
Size7.0 Inch
-
Pixel800(RGB)×480 WVGA 133PPI
-
TypeA-Si TFT-LCD, LCM
-
Active Area152.4(H)×91.44(V) Mm
-
Outline165(H)×104(V) ×5.8(D) Mm
-
Bezel Area155.3(H)×94.3(V) Mm
-
TreatmentAntiglare
-
Luminance300 Cd/m² (Typ.)
-
Place of OriginChina
-
Brand NameInnolux
-
Model NumberAT070TN83
-
Minimum Order Quantity1 pcs
-
PriceNegotiable
-
Packaging DetailsOriginal packaging,conventional packaging
-
Delivery Time7 Days
-
Payment TermsT/T, Western Union
-
Supply Ability100000 Unit/Units per Month
At070tn83 800x480 Innolux 7 Inch Touch TFT LCD T Con Board 800x480

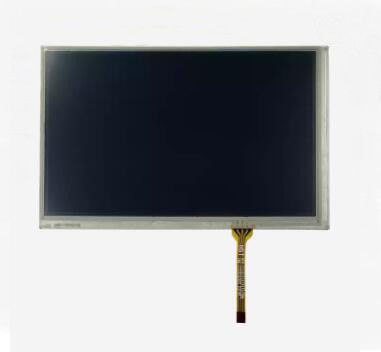

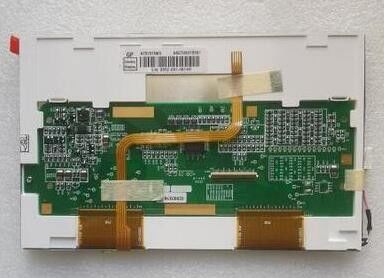

7 Inch Innolux At070tn83 Touch Tft Lcd Display 800x480 With Touch Panel And T-Con
The AT070TN83 is a 7.0 inch diagonal a-Si TFT-LCD display panel product from Innolux , with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by Panelook in the following: WLED Backlight, Matte . Based on its features, Panelook recommend that this model be applied to Digital Photo Frame, Portable DVD Player, MP3 PMP etc.
product details
| Size | 7.0 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel | 800(RGB)×480 [WVGA] 133PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 152.4(H)×91.44(V) mm |
| Outline size |
165(H)×104(V) ×5.8(D) mm |
| Bezel Area | 155.3(H)×94.3(V) mm |
| Treatment | Antiglare |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K |
| Light Source | WLED , 20K hours , With LED Driver |
| Weight | 130g (Typ.) |
| Frame Rate | 60Hz |
| Touch Panel | AT070TN83 V.1 + TP |
|
Interface Type |
TTL (1 ch, 6-bit) , 40 pins Connector |
|
Power Supply |
3.3V |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
features
The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!
faq
1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.
2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.
3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.
4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.
5.Q:How about the warranty?
A: We supply one year warranty.
6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.
7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
Our products are sold all over the world, you can rest assured.
