Product Details:

Place of Origin: China
Brand Name: Innolux
Model Number: AT050TN34 V.1

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging,conventional packaging
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Screen Size: 5.0 Inch Screen Type: LCM, A-Si TFT-LCD
Pixel Number: 480(RGB)×272 (WQVGA) 109PPI Active Area(mm): 110.88 × 62.832 (H×V)
Outline(mm): 120.7 × 75.8 × 4.45 (H×V×D) Bezel Area(mm): 113.90 × 65.85 (H×V)
Luminance: 40 0 Cd/m² (Typ.) Contrast Ratio: 500 : 1 (Typ.) (TM)
High Light:

67Pins TFT Touch Screen Display

,

AT050TN34 V.1 5 inch lcd display hdmi

,

400cd/m2 5 inch lcd screen hdmi

Product Description

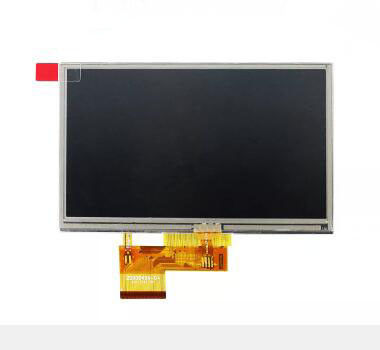

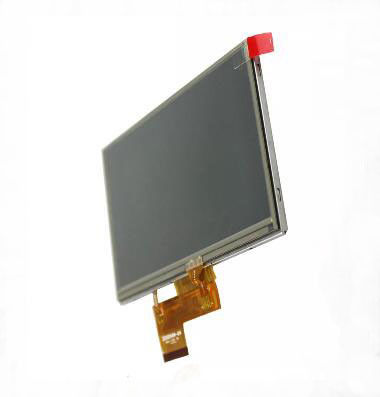

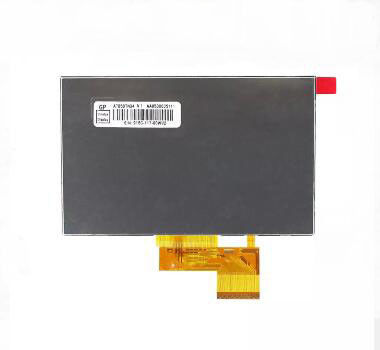

5 inch 480x272 Innolux AT050TN34 V.1 Brightness 400 RGB 67 Pins FPC interface LCD display module for Medical sc



AT050TN34 V.1 is a 5.0" diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, without backlight driver, touchscreen 4-wire Resistive Touch, F/G. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 85°C . It's general features are summarized by Panelook in the following: With Touch, WLED Backlight, Matte , 3 in 1 FPC. Based on its features, Panelook recommend that this model be applied to Portable Navigation, MP3 PMP etc.



product details



Module number AT050TN34 V.1
Resolution

480(RGB)×272 (WQVGA) 109PPI

Bezel Area(mm)

113.90 × 65.85 (H×V)

Active Area

110.88 × 62.832 (H×V)

View angle

70/70/50/70

Arrangement

RGB Vertical Stripe

Treatment

Antiglare, Hard coating (3H)

Electrical Interface Parallel RGB
Brightness 400(cd/m2)
Contrast ratio 500:1
Outline dimension

120.7 × 75.8 × 4.45 (H×V×D)

Backlight

6S2P WLED , 20K hours , No Driver

Good View at

6 o'clock

Display mode TN, Normally White, Transmissive

Voltage Supply

1.8/3.3V (Typ.)(DVDD/AVDD)

Display Colors 16.7M

Max. Ratings

Storage Temp.: -30 ~ 85 °C Operating Temp.: -20 ~ 70 °C

Touchscreen

4-wire Resistive Touch, F/G

Signal Type

Parallel RGB (1 ch, 8-bit) , 67 pins FPC





features



    This model is suitable for electronic instrumentation,Handheld terminal, on-board display, video phone, MP3, PMP.

    The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!

67Pins TFT Touch Screen Display AT050TN34 V.1 5 Inch LCD Display Hdmi 400cd/M2 0

67Pins TFT Touch Screen Display AT050TN34 V.1 5 Inch LCD Display Hdmi 400cd/M2 1

faq


1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.



2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.



3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.



4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.



5.Q:How about the warranty?
A: We supply one year warranty.



6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.



7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
