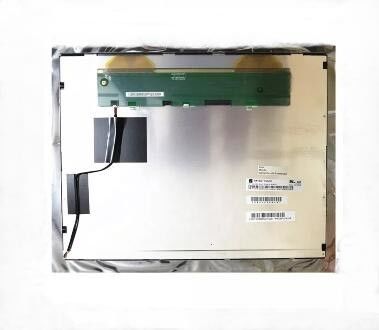

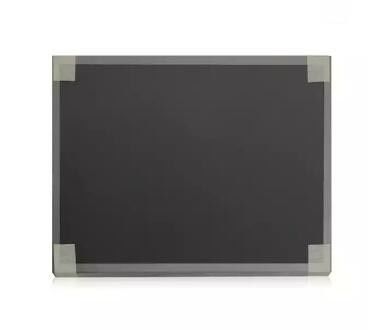

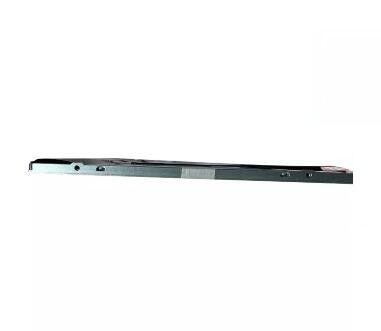

Tianma Tm150tdsg70 15 Inch LCD Laptop Screen Display Panel 300cd/M2

Tianma Tm150tdsg70 15 Inch LCD Laptop Screen Display Panel 300cd/M2

Product Details:

Place of Origin: China
Brand Name: TIANMA
Model Number: TM150TDSG70

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging,conventional packaging
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Size: 15 Inch Pixel: 1024(RGB)×768 (XGA) 85PPI
Screen Type: LCM , A-Si TFT-LCD Active Area(mm): 304.128 × 228.096 (H×V)
Outline(mm): 326.5 × 253.5 × 12.1 (H×V×D) Bezel Area(mm): 307.4 × 231.3 (H×V)
Treatment: Antiglare Luminance: 300 Cd/m² (Typ.)
High Light:

Tm150tdsg70 15 inch lcd laptop screen

,

15 inch lcd panel 300cd/m2

,

Tm150tdsg70 15 inch lcd display panel

Product Description

Tianma Tm150tdsg70 15 Inch 1024*768 Ttf Lcd Display Modules Vga/Hd-Mi Controller Board



TM150TDSG70 is a 15.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. Based on datasheet with version of Pre Ver1.4 which was released out on 12 19 2014, TM150TDSG70 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×12.1(D) mm, viewing area size of 307.4(W)×231.3(H) mm, with surface treament of Antiglare, net weight of 1.00Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, TM150TDSG70 can provides 300 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 8 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 60% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. TM150TDSG70 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of TM150TDSG70 We strongly recommend that you should refer to datasheet listed on tftcolorlcddisplay.com




product details



Module number TM150TDSG70
Resolution 1024x768
Pixel Pitch 0.297 x 0.297  (mm)
Active Area 304.128(H)x228.096(V)  (mm)
View angle R/L/U/D 80/80/80/80 (Deg)
Mode TN
LCD Surface Anti-glare,3H
Number of Colors 262K/16.2M
Electrical Interface Digital, LVDS(1ch, 6/8 bit)
Brightness 300 cd/m2
Contrast ratio 600:1
Outline dimension 325(H)x253.5(V)x 12.0 (T) (mm)
Gross weight TBD
Backlight WLED
LED Life (hrs.) 50K
Supply Voltage (V) 3.3V
Response time 8  (ms)
Operate temperature -20 ~ 70 °C
Storage temperature N/A
Operate humidity 5-95  (%RH)
Storage humidity 5-95  (%RH)



features

    The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!

Tianma Tm150tdsg70 15 Inch LCD Laptop Screen Display Panel 300cd/M2 0

​​

faq



1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.



2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.



3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.



4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.



5.Q:How about the warranty?
A: We supply one year warranty.



6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.



7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
