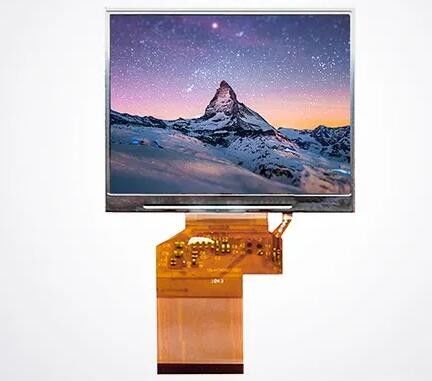

300cd/M2 320 X 240 Display 3.5in Lq035nc111 LCD Color Screen
|Place of Origin:||china|
Payment & Shipping Terms:
|Minimum Order Quantity:||1|
|Packaging Details:||Original packaging,conventional packaging|
|Delivery Time:||7 Days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||10000 Unit/Units per Month|
|Outline:||76.9×63.9×3.46 (H×V×D)||Active Area:||70.08 × 52.56 (H×V)|
|Bezel Area:||73.03 × 55.50 (H×V)||Luminance:||300 Cd/m² (Typ.)|
|Color:||16.7||Viewing Angle:||60/60/50/55 (Typ.)(CR≥10)|
320 x 240 lcd 300cd/m2,
320 x 240 display 3.5in,
lq035nc111 lcd Color Screen

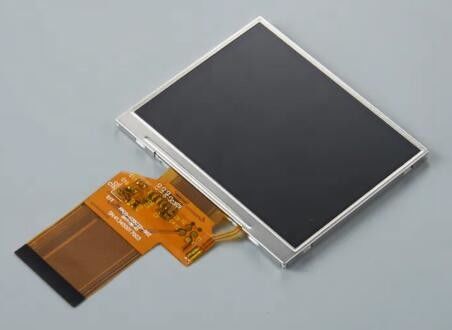

54 Pin 3.5" Tft Lcd 320*240 Color Screen 320 X 240 3.5 Inch Tft Lcd Display Panel Lq035nc111

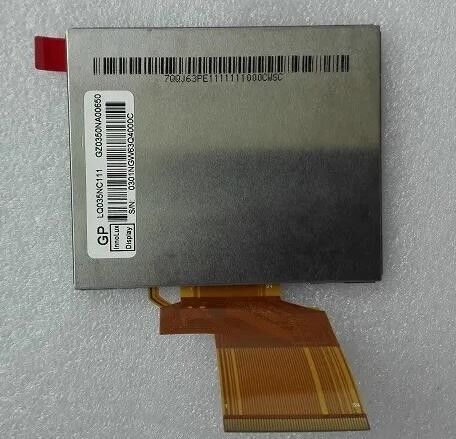

LQ035NC111 is a 3.5-inch LCD module product launched by Innolux, which is equipped with WLED backlight, no backlight drive, no touch, working temperature of-20 ~ 70 C, and storage temperature of-30 ~ 80 C. This product has been qualified as a HX8238-D driver IC. LQ035NC111 displays a resolution of 320 (RGB)× 240 (QVGA), an aspect ratio of 4:3 (width: height), and pixels in RGB vertical bars. Its display area size is 70.08 (wide)× 52.56 (height) mm, 76.9 (wide)× 63.9 (height) ×3.46 (thick) mm, 73.03 (wide)× 55.50 (height) mm, fog surface, product net weight 30.0g (Typ.). The LQ035NC111 uses a Digital RGB (8 / 24-bit) + SPI, CCIR601 / 656 signal interface, a total of 54 pins, an FPC connection, and a drive voltage of 3.3V (Typ.).Widely used in electronic instruments, medical instruments, handheld terminals, vehicle display, digital camera, digital camera and other products.
|Screen Size||3.5 inch|
|Screen Type||a-Si TFT-LCD, LCM|
|Pixel Format||320(RGB)×240, QVGA, 115PPI|
|Configuration||RGB Vertical Stripe|
|Outline Size||76.9(W)×63.9(H) ×3.46(D) mm|
|Contrast Ratio||400:1 (Typ.) (TM)|
|Response Time||10/15 (Typ.)(Tr/Td)|
|Operating Mode||TN, Normally White, Transmissive|
|16.7M 50% NTSC|
|Lamp Type||6S1P WLED , 10K hours , Without Driver|
|Panel Weight||30g (Typ.)|
|Signal Interface||Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins FPC|
|Input Voltage||3.3V (Typ.)|
|Environment||Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C|
Widely used in electronic instruments, medical instruments, handheld terminals, vehicle display, digital camera, digital camera and other products.
The panel parameters displayed in this page are entered by our electronic engineers according to the specifications, and we have tried to reduce the errors, but the parameters are not fully correct, please refer to the specifications!
1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.
2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.
3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.
4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.
5.Q:How about the warranty?
A: We supply one year warranty.
6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.
7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
