Innolux 10.1 Inch 1280*800 40 Pin Lvds Tablet LCD Screen Displays Touch Screen Ej101ia-01g
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | EJ101IA-01G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging,conventional packaging |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Size: | 10.1 Inch | Pixel: | 1280(RGB)×800, WXGA, 149PPI |
|---|---|---|---|
| Outline Size: | 229.46(W)×149.1(H) ×4.66(D) Mm | Display Area: | 216.96(W)×135.6(H) Mm |
| Panel Type: | A-Si TFT-LCD , LCM | Brightness: | 350 (Typ.)(cd/m²) |
| Contrast Ratio: | 800:1 (Typ.) (TM) | Backlight Type: | LED White |
| High Light: | 40Pin Tablet LCD Screen,1280x800 tablet lcd displays,tablet pc touch screen Ej101ia-01g |
||
Product Description
10.1 Inch 1280x800 Ej101ia-01g Ips 10.1 "Lcd Module 1280*800 Hd Custom Industrial Touch Screen

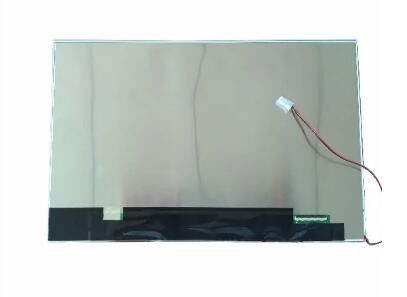

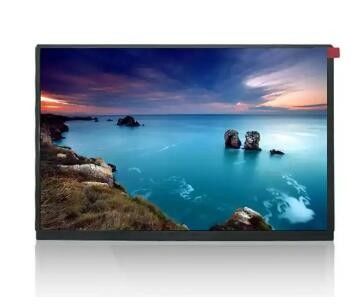

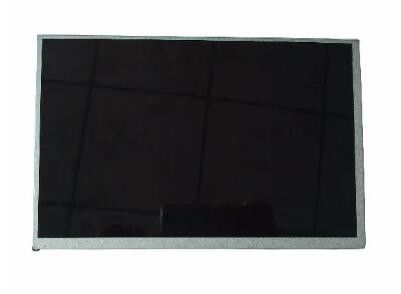

EJ101IA-01G is a 10.1-inch LCD module product with A-Si TFT-LCD technology introduced by Innolux. It is equipped with WLED backlight, no backlight drive, no touch, display resolution of 1280 (RGB) 800 (WXGA), width ratio of 16:10 (width: height), and pixels with RGB vertical strip arrangement. Its display area size is 216.96135.6 (width and height) mm, its appearance size is 229.46149.1 (width and height) 4.66 (thick) mm, its surface treatment is Hard coating, and its product net weight is 183g (Typ.). The EJ101IA-01G has a LVDS (1 ch, 8-bit) signal interface of 40 pins, a terminal connection, and a drive screen voltage of 2.5/8.2/12.5/-13V (Typ.) (VDD / AVDD / VGH / VGL). It operates at a temperature of-10-60 C with a storage temperature of-20-70 C.This product is widely used in tablet computers, electronic instruments, medical instruments, smart home appliances, commercial display.
product details
| Screen Size | 10.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Format | 1280(RGB)×800, WXGA, 149PPI |
| Configuration | RGB Vertical Stripe |
| Display Area | 216.96(W)×135.6(H) mm |
| Outline Size |
229.46(W)×149.1(H) ×4.66(D) mm |
| Brightness | 350 (Typ.)(cd/m²) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Surface | Hard coating |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Display Colors | 16.7M 50% NTSC |
| Lamp Type | 3S10P WLED , 15K hours , Without Driver |
| Panel Weight | 183g (Typ.) |
| Frame Rate | 60Hz |
| Touch Panel | Without |
|
Signal Interface |
LVDS (1 ch, 8-bit) , 40 pins Connector |
|
Input Voltage |
2.5/8.2/12.5/-13V (Typ.)(VDD/AVDD/VGH/VGL) |
|
Environment |
Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
features
The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!
faq
1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.
2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.
3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.
4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.
5.Q:How about the warranty?
A: We supply one year warranty.
6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.
7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
