Product Details:

Place of Origin: China
Brand Name: Innolux
Model Number: EJ101IA-01G

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging,conventional packaging
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Size: 10.1 Inch Pixel: 1280(RGB)×800
Panel Type: A-Si TFT-LCD , LCM Outline: 229.46(W)×149.1(H) ×4.66(D) Mm
Display Area: 216.96(W)×135.6(H) Mm Brightness: 350 (Typ.)(cd/m²)
Lamp Type: WLED Viewing Angle: 85/85/85/85
High Light:

Tablet LCD Screen 10.1in

,

tablet LCD display Ej101ia-01g

,

10.1 tft lcd display 1280*800

Product Description

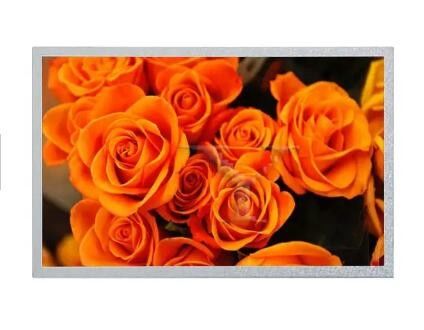

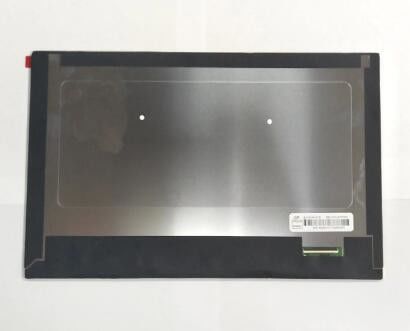

10.1 Inch Lcd Module Ej101ia-01g 1280*800 Suitable For Industrial Display Innolux



EJ101IA-01G is a 10.1-inch LCD module product with A-Si TFT-LCD technology introduced by Innolux. It is equipped with WLED backlight, no backlight drive, no touch, display resolution of 1280 (RGB) 800 (WXGA), width ratio of 16:10 (width: height), and pixels with RGB vertical strip arrangement. Its display area size is 216.96135.6 (width and height) mm, its appearance size is 229.46149.1 (width and height) 4.66 (thick) mm, its surface treatment is Hard coating, and its product net weight is 183g (Typ.). The EJ101IA-01G has a LVDS (1 ch, 8-bit) signal interface of 40 pins, a terminal connection, and a drive screen voltage of 2.5/8.2/12.5/-13V (Typ.) (VDD / AVDD / VGH / VGL). It operates at a temperature of-10-60 C with a storage temperature of-20-70 C.This product is widely used in tablet computers, electronic instruments, medical instruments, smart home appliances, commercial display.



product details



Screen Size 10.1 inch
Screen Type LCM , a-Si TFT-LCD
Pixel Format 1280(RGB)×800, WXGA, 149PPI
Configuration RGB Vertical Stripe
Display Area 216.96(W)×135.6(H) mm
Outline Size

229.46(W)×149.1(H) ×4.66(D) mm

Brightness 550 (Typ.)(cd/m²)
Contrast Ratio 1000:1 (Typ.) (TM)
Surface Hard coating
Response Time 10/15 (Typ.)(Tr/Td)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
Operating Mode IPS, Normally Black, Transmissive
Display Colors 16.7M 50% NTSC
Lamp Type 3S10P WLED , 15K hours , Without Driver
Panel Weight 183g (Typ.)
Frame Rate 60Hz
Touch Panel Without

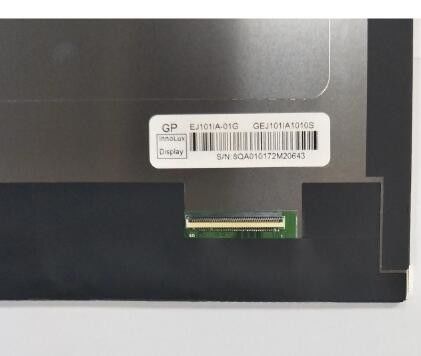

Signal Interface

LVDS (1 ch, 8-bit) , 40 pins Connector

Input Voltage

2.5/8.2/12.5/-13V (Typ.)(VDD/AVDD/VGH/VGL)

Environment

Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C



features

    The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!
