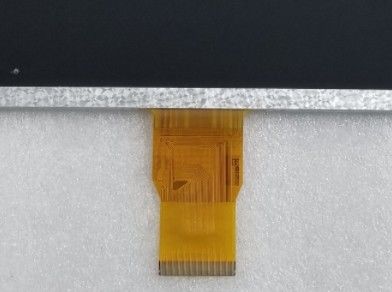

10.1 Inch TTL Interface Industrial TFT Panel WXGA 149PPI 1024×600 Pixel
Product Details:
| Place of Origin: | China |
| Brand Name: | RISING-SUN |

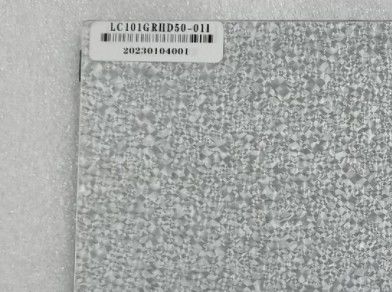

| Model Number: | LC101GRHD50-01I |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging,conventional packaging |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Size: | 10.1 Inch | Pixel: | 1024×600, WXGA, 149PPI |
|---|---|---|---|
| Outline: | 235.0W)×143.0(H) ×5.2(D) Mm | Active Area: | 222.72(W)*125.28(H) Mm |
| Panel Type: | A-Si TFT-LCD , LCM | Brightness: | 350 (Typ.)(cd/m²) |
| Backlight: | 42 Leds | Lamp Type: | WLED |
| High Light: | TTL Interface Industrial TFT Panel,149PPI Pixel Industrial TFT Panel,WXGA LCD Screen Panel |
||
Product Description
10.1 Inch TTL Interface Industrial TFT Panel WXGA 149PPI 1024×600 Pixel
10.1 Inch 1024*600 Ttl Interface Lc101grhd50-01i Lcd Screen Industrial Tft Panel Rising-Sun

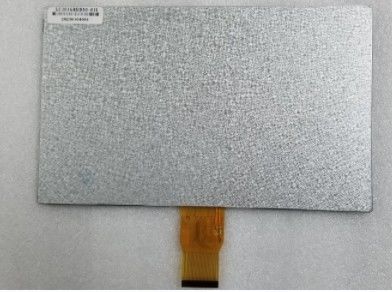

Lc101grhd50-01i is a 10.1-inch LCD module product with A-Si TFT-LCD technology introduced by rising-sun. It is equipped with WLED backlight, no backlight drive, no touch, display resolution of 1024 (RGB) 600 (WXGA), width ratio of 16:10 (width: height), and pixels with RGB vertical strip arrangement. Its display area size is 222.72(W)*125.28(H) mm (width and height) mm, its appearance size is 235.0W)×143.0(H) ×5.2(D) mm, its surface treatment is Hard coating, and its product net weight is 183g (Typ.). The EJ101IA-01G has a LVDS (1 ch, 8-bit) signal interface of 40 pins, a terminal connection, and a drive screen voltage of 2.5/8.2/12.5/-13V (Typ.) (VDD / AVDD / VGH / VGL). It operates at a temperature of-20-70 C with a storage temperature of-30-80 C.This product is widely used in tablet computers, electronic instruments, medical instruments, smart home appliances, commercial display.
product details
| Screen Size | 10.1 inch |
| LCD Type | Normally Black,Transmissive |
| Pixel Format | 1024(RGB)×600 |
| Configuration | RGB Vertical Stripe |
| Display Area | 216.96(W)×135.6(H) mm |
| Outline Size |
235.0(W)×143.0(H) ×5.2(D) mm |
| Backlight | 42-LEDs (white) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Surface | Hard coating |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Display Colors | 16.7M 50% NTSC |
| Frame Rate | 60Hz |
| Touch Panel | Without |
|
Data Transfer |
RGB 24-bit |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
features
The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!
faq
1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.
2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.
3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.
4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.
5.Q:How about the warranty?
A: We supply one year warranty.
6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.
7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
