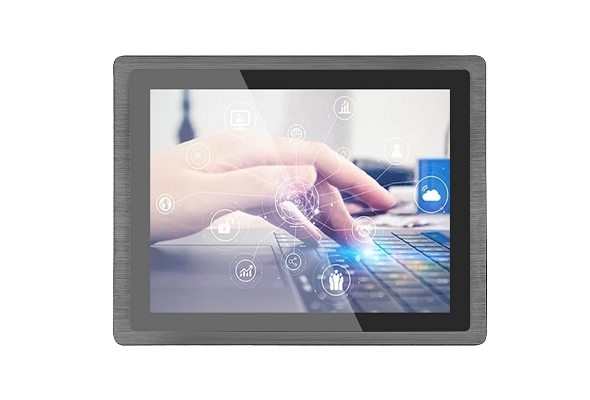

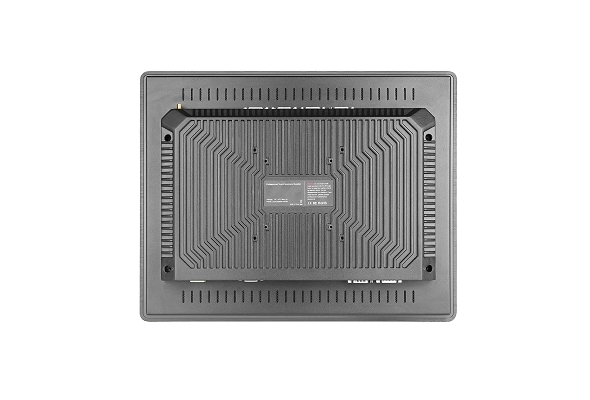

10.4/12.1/15/17/19 inch Embedded Industrial Touch Panel PC

10.4/12.1/15/17/19 inch Embedded Industrial Touch Panel PC

  • Resolution
    1024x768
  • Panel Size
    15 Inch
  • Touch Panel
    CTP
  • Contrast Ratio
    800:1
  • View Angle
    80°/80°/70°/80° (R/L/U/D)
  • Brightness (cd/m²)
    350 Cd/m2
  • Response Time
    <8ms
  • Brand Name
    LC Rising-sun
  • Model Number
    15 Inch
  • Minimum Order Quantity
    1
  • Payment Terms
    ,T/T

10.4/12.1/15/17/19 inch Embedded Industrial Touch Panel PC

10.4/12.1/15/17/19 inch Embedded Industrial Touch Panel PC


旭日科技是一家专注于广播级现场监视器,工业级触摸显示器及一体机研发,生产和销售的高新技术企业.凭借强大的技术优势和严格的质量管控流程,旭日科技已通过CE,KCC,FCC,CCC,ROHS,IP67,HDMI及ISO9001等认证,赢得了国内外客户的青睐.

RISING-SUN以专业的产品功能,高品质和高性价比著称,凭借20年的专业研发经验,产品广泛应用于全球医疗设备,金融系统,工业IV,轨道交通及工业应用领域.


PC参数

中央处理器

Inter Celeron J1900,四核,2.0Ghz,无风扇(Core i3,Core i5,Core i7 可选)

记忆

4GB DDR3, (最大16G)


硬盘可选


固态硬盘:64GB,128GB,256GB,512GB,1TB

硬盘:500GB,1TB

网络

  1×Realtek RTL 8111E千兆以太网控制器

无线网络

  WIFI可选

输入/输出接口

  1xHDMI/VGA/LAN,4x USB/音频输出/电源 DC

操作系统

  预装测试版Windows 7/8/10,Linux

图像格式

  支持BMP,JPEG,PNG,GIF

液晶面板

面板尺寸

  15英寸

解决

  1024x768

亮度

  350 坎德拉/平方米

响应时间

  15毫秒

对比度

  800:1

视角

  80°/80°/70°/80°(右/左/上/下)

触摸屏

触摸类型

  10 点投射电容式触摸可选

触摸界面

  USB

响应时间

  <8毫秒

发光度

  75-85%

电源

电源

  交流 100 - 240 伏

工作电压

  直流 12V

功耗

  ≤18瓦

操作环境

温度

  工作:0 至 60°C,存储:-10 至 70°C

相对湿度

  5%~95% @ 40°C,无凝结

振动

  5-500 Hz,0.026 G²/Hz,2.16 Grms,X,Y,Z,每轴 1 小时

包装细节

配件

  电源适配器,Wifi天线

其他


安装(选项)

提供壁挂支架,VESA 100×100mm

 提供落地支架来支撑 PC

认证

CE,FCC,ROHS

保修单

1年保修


The 15-inch industrial control all-in-one PC has a wide range of uses in various applications, mainly including but not limited to the following fields:

Industrial automation: factory control system, production line monitoring, equipment control, etc.

Medical equipment: medical image display, medical information management system, hospital informatisation, etc.

Transportation: Intelligent traffic system, station information display, truck freight, etc.

Retail: POS systems, digital billboards, self-service terminals, etc.

Logistics and fleet: warehouse management system, logistics tracking system, automated fleet equipment control, etc.

Financial sector: ATM machines, self-service terminals, bank information display systems, etc.

Education: teaching interactive equipment, digital classroom, school information management system, etc.

Military and aerospace: flight simulator, military command and control system, aerospace equipment control, etc.

Environmental monitoring: sewage treatment control, meteorological monitoring, environmental monitoring equipment, etc.

In these fields, 15-inch industrial control all-in-one PCs are usually initialised as display and control devices, capable of providing reliable performance and stability for a variety of demanding industrial environments.


For more detailed and accurate information, please contact us for a copy of our specifications.
