Highlight
Industrial TFT LCD Panel
,10.4inch TFT LCD Panel
,LVDS Interface TFT LCD Display
-
Size10.4 Inch
-
Pixel1024(RGB)×768
-
Outline228.4 (H) X 175.4 (V) X 5.9 (D) Mm
-
Active Area210.432 (H) X 157.824 (V) Mm
-
Pixel Pitch(HxV)0.2055 X 0.2055 Mm
-
Panel TypeTransmissive, A-Si
-
Contrast Ratio (Light On)1000:1 (Typ)
-
InterfaceLVDS
-
Place of OriginChina
-
Brand NameRISING-SUN
-
Model NumberLC104GQXL30-A0
-
Minimum Order Quantity1 pcs
-
PriceNegotiable
-
Packaging DetailsOriginal packaging,conventional packaging
-
Delivery Time7 Days
-
Payment TermsT/T, Western Union
-
Supply Ability100000 Unit/Units per Month

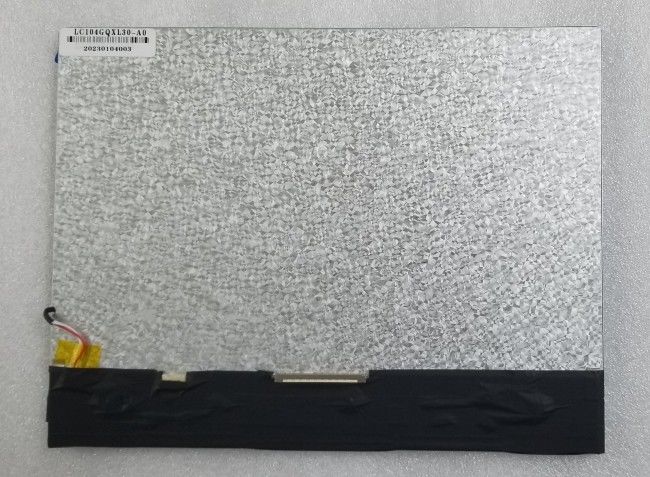

10.4 Inch 1024*768 Industrial TFT LCD Panel LVDS Interface Screen

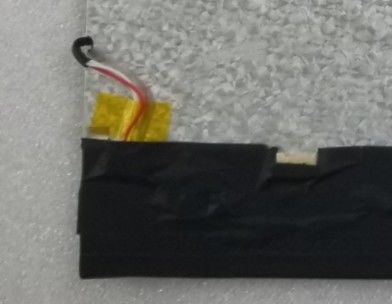

10.4 Inch 1024*768 Industrial TFT LCD Panel LVDS Interface Screen

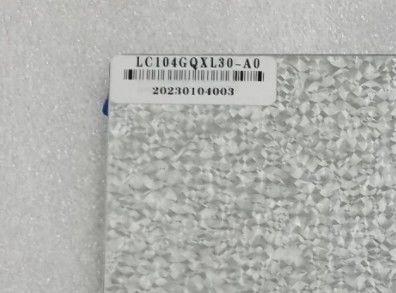

10.4 Inch 1024*768 Lvds Interface Lc104gqxl30-A0 Lcd Screen Industrial Tft Panel Rising-Sun
Lc104gqxl30-A0 is a transmissive type color active matrix liquid crystal display (LCD), which uses amorphous thin film transistor (TFT) as switching devices. This panel has a 10.4 inches diagonally measured active display area with resolution 1024 x 768. This product is composed of a TFT LCD panel, polarizers, driver ICs, FPC and PCBA. This product is widely used in tablet computers, electronic instruments, medical instruments, smart home appliances, commercial display.
| Screen Size | 10.4 inch |
| LCD Type | Normally Black,Transmissive |
| Pixel Format | 1024(RGB)×600 |
| Configuration | RGB Vertical Stripe |
| Display Area | 216.96(W)×135.6(H) mm |
| Outline Size | 235.0(W)×143.0(H) ×5.2(D) mm |
| Pixel Pitch(HxV) | 0.2055 x 0.2055 mm |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Surface | Hard coating |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle (Light On) | (R/U/L/D) CR≧10 @ R/L/U/D(80°/80°/80°/80°) (Typ.) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Display Colors | 60% NTSC |
| Color Numbers | 256K/16.7 M |
| Touch Panel | Without |
Surface Treatment | HC |
Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 70 °C |
features
The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!
faq
1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.
2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.
3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.
4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.
5.Q:How about the warranty?
A: We supply one year warranty.
6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.
7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
Our products are sold all over the world, you can rest assured.
