AT070TN83 V.1 Innolux TFT HD Display LCD 7 Inch Touch Screen Display HDMI ODM
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | AT070TN83 V.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging,conventional packaging |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Size: | 7.0 Inch | Type: | A-Si TFT-LCD, LCM |
|---|---|---|---|
| Pixel: | 800(RGB)×480 [WVGA] 133PPI | Outline: | 165(H)×104(V) ×5.8(D) Mm |
| Active Area: | 152.4(H)×91.44(V) Mm | Bezel Area: | 155.3(H)×94.3(V) Mm |
| Treatment: | Antiglare | Luminance: | 300 Cd/m² (Typ.) |
| High Light: | Innolux TFT HD Display,AT070TN83 V.1 lcd 7 inch touch screen,7 inch touch screen display hdmi odm |
||
Product Description

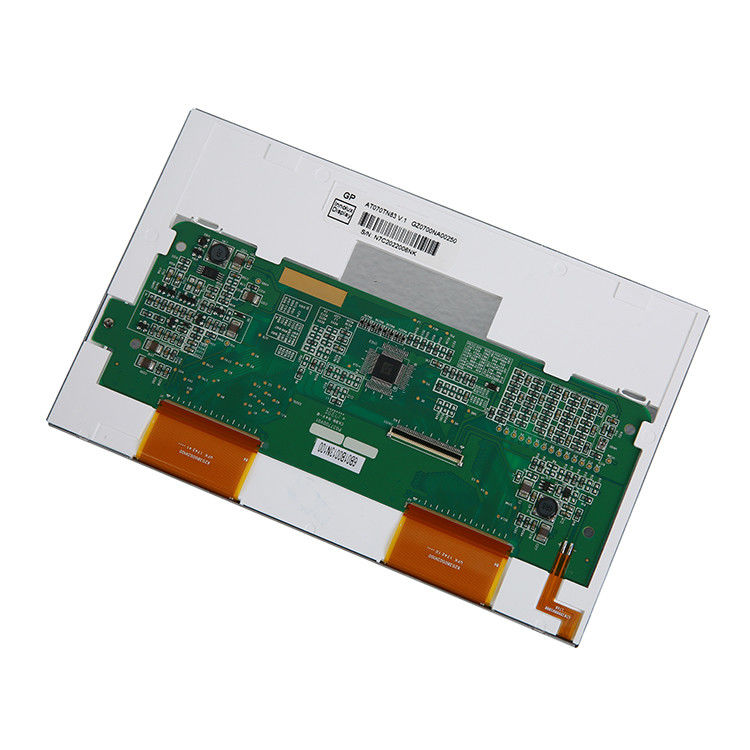

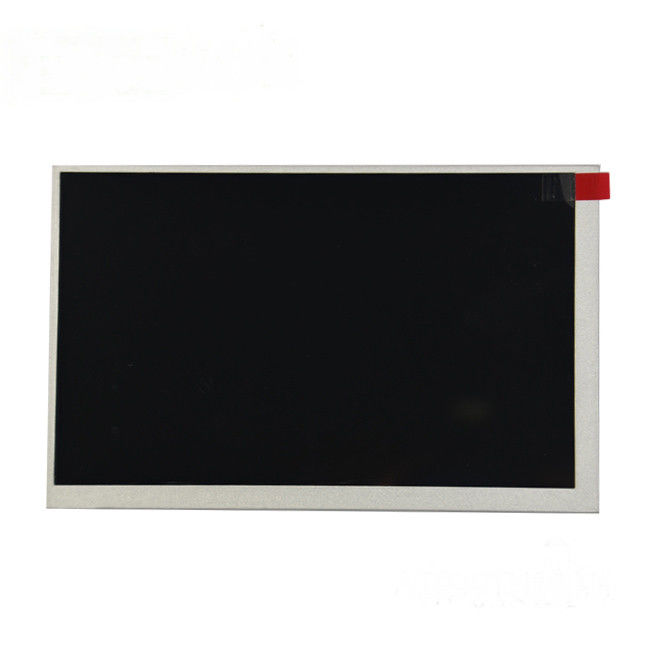

Innolux 7 inch TFT LCD Panel AT070TN83 V.1 for digital photo frame picture video lcd frames 40PINS
AT070TN83 V.1 is a 7.0-inch LCD module product using a-Si TFT-LCD technology launched by Innolux. It is equipped with WLED backlight, including LED driver backlight drive, no touch, display resolution of 800 (RGB)× 480 (WVGA), width ratio of 15:9 (width: height), pixels with RGB vertical strip arrangement. Its display area size is 152.4×91.44 (wide×height) mm, visual size 155.3×94.3 (wide× height) mm, appearance size 165×104 (wide×height)×5.8 (thick) mm, surface treatment, product net weight 130g (Typ.). The AT070TN83 V.1 uses a TTL (1 ch, 6-bit) signal interface, with a total of 40 pins, a terminal connection, and a drive screen voltage of 3.3V (Typ.) (VCC). It operates at a temperature of-20-70 C and has a storage temperature of-30-80 C. This model is recommended for industrial instrumentation, medical instruments, and portable DVD.
product details
| Diagonal Size | 7.0 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 800(RGB)×480 [WVGA] 133PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 152.4(H)×91.44(V) mm |
| Outline Dim. |
165(H)×104(V) ×5.8(D) mm |
| Bezel Area | 155.3(H)×94.3(V) mm |
| Treatment | Antiglare |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K |
| Light Source | WLED , 20K hours , With LED Driver |
| Weight | 130g (Typ.) |
| Frame Rate | 60Hz |
| Touch Panel | Without |
|
Interface Type |
TTL (1 ch, 6-bit) , 40 pins Connector |
|
Power Supply |
3.3V (Typ.)(VCC) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
features
The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!
faq
1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.
2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.
3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.
4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.
5.Q:How about the warranty?
A: We supply one year warranty.
6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.
7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
