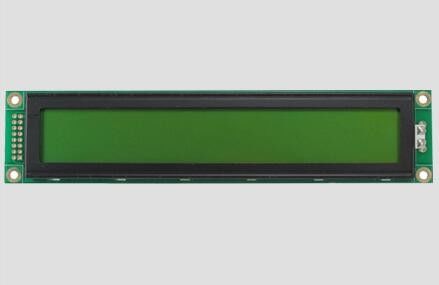

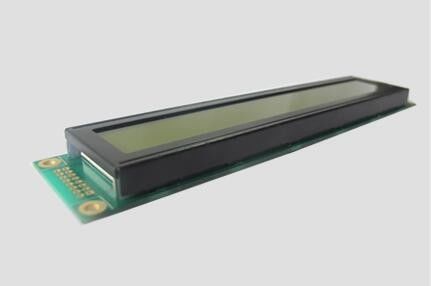

20*1 Monochrome Character Dot Matrix LCD Display Module Yellow Green Backlight LCX201A

20*1 Monochrome Character Dot Matrix LCD Display Module Yellow Green Backlight LCX201A

  • Highlight

    20*1 Dot Matrix LCD Display Module

    ,

    Monochrome Dot Matrix LCD Display Module

  • Display Type
    Character LCD Module
  • Display Mode
    Yellow-Green/STN Positive/Semi-Transparent
  • Display Size
    180.0*40.0*14.0mm
  • Field Of View
    149.0*23.0mm
  • Backlight
    Yellow Green
  • Operating Temperature
    -20-70℃
  • Operating Voltage
    5v
  • Interface
    Parallel Port
  • Place of Origin
    SHEN ZHEN
  • Brand Name
    RISING-SUN
  • Model Number
    LCX201A
  • Minimum Order Quantity
    1 pcs
  • Price
    Negotiable
  • Packaging Details
    Original packaging,conventional packaging
  • Delivery Time
    3-5 weeks
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    100000 Unit/Units per Month

20*1 Monochrome Character Dot Matrix LCD Display Module Yellow Green Backlight LCX201A

20*1 character display lcx201a monochrome lcd module parallel  5v



20 1 Character LCD Modules Product Description:

This product is a 20 character * 1 line character LCD module, which can display various English characters and graphics. It has a high-speed 8-bit standard parallel data bus interface adapted to the 80 series and 68 series, and has a dedicated instruction set with simple instructions. Font ASCII, operating voltage range 5.0V, often used in instrumentation, handheld medical equipment.



This 16x4 Character Display LCD Module features a 180.0*40.0*14.0mm size with a bright yellow green backlight. It has a wide operating temperature range from -20 to 70℃ and a storage temperature range from -30 to 80℃. With its character display LCD module, you can display text easily and clearly. This module is perfect for various applications such as industrial equipment, medical, home appliance, and automotive systems.



20*1 Charater monochrome lcd module Features:

  • Product Name: Character Display LCD Module
  • Display Size: 180.0*40.0*14.0mm
  • Display Resolution: 20x1
  • Operating Voltage: 5V
  • Viewing Angle: 6H
  • Backlight Color: yellow green
  • Parallel Interface: Yes


Technical Parameters:

Attribute Character Display LCD Module
Operating Voltage 5V
Display Resolution 20x1 20*1 lcd display module
Interface Type Parallel Port
Display Type Character LCD Module
Operating Temperature -20-70℃
Backlight Color yellow green
Storage Temperature -30-80℃
Display Size

180.0*40.0*14.0mm

Viewing Angle 6H



20 1 lcd display module Applications:

RISING-SUN LCX201A is a monochrome 20x1 LCD character display module with yellow green backlight, which has a size of 180.0*40.0*14.0mm and is equipped with a parallel port interface. It is designed to work in a wide range of temperatures between -20 and 70℃, and can be stored in temperatures between -30 and 80℃.

The RISING-SUN LCX201A Character display LCD module is made to be highly reliable and durable, thanks to its robust construction and long-term stability. It is perfect for applications that require a clear display of text or numbers, such as medical devices, industrial control systems, and home appliances. The module can be easily configured and programmed using a variety of compatible development boards and programming languages, making it a great option for DIY projects.

The RISING-SUN LCX201A character display LCD module is an ideal choice for anyone looking for a reliable, cost-effective solution for their display needs. With its compact size and low power consumption, it is perfect for applications where space and energy efficiency are a priority. It is also highly compatible with a variety of development boards and programming languages, making it an excellent choice for a wide variety of projects.



20*1 Monochrome Character Dot Matrix LCD Display Module Yellow Green Backlight LCX201A 0

20*1 lcd display module Customization:

Customized Character Display LCD Module from RISING-SUN

This Character Display LCD Module is a monochrome LCD with a parallel interface, Model Number LCX201A, Brand Name RISING-SUN, Backlight Color Yellow green , Display Size yellow green , Storage Temperature -30-80℃, Operating Temperature -20-70℃, and Place of Origin SHEN ZHEN.



Support and Services:

We provide technical support and service for our Character Display LCD Module. Our team is committed to helping our customers get the most out of their Character Display LCD Module. We provide technical assistance to help customers quickly troubleshoot issues, as well as detailed user manuals, software updates, and other resources to help customers get the most out of their product. In addition, we provide a customer service team that is available to answer any questions about the product or provide assistance with installation and setup.



FAQ:

Character Display LCD Module

A: The brand name of Character Display LCD Module is RISING-SUN.
A: The model number of Character Display LCD Module is LCX201A.
A: Character Display LCD Module is made in SHEN ZHEN.
A: The display size of Character Display LCD Module is 149.0x23.0mm.
A: The viewing angle of Character Display LCD Module is 6 o'clock.

If you need product details, please contact RISING-SUN.
