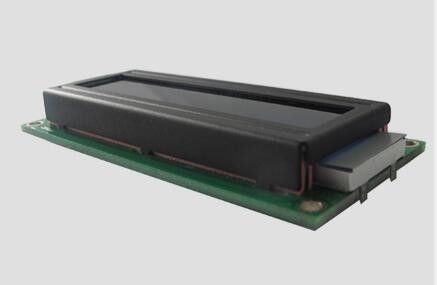

Parallel Port 5V Character LCD Display Module 16x2 Monochrome Blue Backlight Color

Parallel Port 5V Character LCD Display Module 16x2 Monochrome Blue Backlight Color

Product Details:

Place of Origin: SHEN ZHEN
Brand Name: RISING-SUN
Model Number: LCX1602A

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging,conventional packaging
Delivery Time: 3-5 weeks
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Display Size: 80.0*36.0*12.0mm Field Of View: 64.5*13.8mm
Display Type: Character LCD Module Acklight Color: Write
Interface Type: Parallel Port Operating Voltage: 5V
Operating Temperature: -20-70℃ Storage Temperature: -30-80℃
High Light:

Parallel Port 16x2 LCD Display Module

,

Character LCD Display Module 16x2

,

Blue 16x2 LCD Display Module

Product Description

16x2 Monochrome Lcd Character Display Module 16*2 Character Display  Parallel Port 5v

16*2 Charater display  lcd module Product Description:

This product is a 16-character * 2-line character LCD module, which can display various English characters and graphics. It has a high-speed 8-bit standard parallel data bus interface adapted to the 80 series and 68 series, and has a dedicated instruction set with simple instructions. Font ASCII, operating voltage range 5.0V, often used in instrumentation, handheld medical equipment.



This 16x2 Character Display LCD Module features a 80.0*36.0*12.0mm size with a bright yellow green backlight. It has a wide operating temperature range from -20 to 70℃ and a storage temperature range from -30 to 80℃. With its character display LCD module, you can display text easily and clearly. This module is perfect for various applications such as industrial equipment, medical, home appliance, and automotive systems.



16*2 Charater display monochrome lcd module Features:

  • Product Name: Character Display LCD Module
  • Display Size: 80.0*36.0*12.0mm
  • Display Resolution: 16x2
  • Operating Voltage: 5V
  • Viewing Angle: 6H
  • Backlight Color: Yellow Green
  • Parallel Interface: Yes


Technical Parameters:

Attribute Character Display LCD Module
Operating Voltage 5V
Display Resolution 16x2 16*2 lcd display
Interface Type Parallel Port
Display Type Character LCD Module
Operating Temperature -20-70℃
Backlight Color Write
Storage Temperature -30-80℃
Display Size

80.0*36.0*12.0mm

Viewing Angle 6H



16*2 monichrome lcd module Applications:

RISING-SUN LCX1602A is a monochrome 16x2 LCD character display module with write backlight, which has a size of 80.0*36.0*12.0mm and is equipped with a parallel port interface. It is designed to work in a wide range of temperatures between -20 and 70℃, and can be stored in temperatures between -30 and 80℃.

The RISING-SUN LCX1602A character display LCD module is made to be highly reliable and durable, thanks to its robust construction and long-term stability. It is perfect for applications that require a clear display of text or numbers, such as medical devices, industrial control systems, and home appliances. The module can be easily configured and programmed using a variety of compatible development boards and programming languages, making it a great option for DIY projects.

The RISING-SUN LCX1602A character display LCD module is an ideal choice for anyone looking for a reliable, cost-effective solution for their display needs. With its compact size and low power consumption, it is perfect for applications where space and energy efficiency are a priority. It is also highly compatible with a variety of development boards and programming languages, making it an excellent choice for a wide variety of projects.

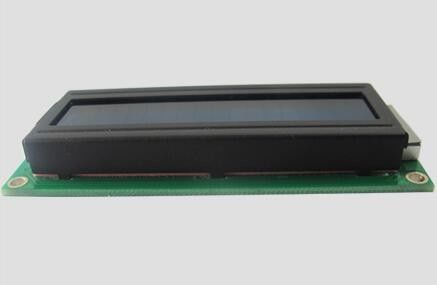

Parallel Port 5V Character LCD Display Module 16x2 Monochrome Blue Backlight Color 0

16*2 lcd module Customization:

Customized Character Display LCD Module from RISING-SUN

This Character Display LCD Module is a monochrome LCD with a parallel interface, Model Number LCX1602A, Brand Name RISING-SUN, Backlight Color Yellow Green, Display Size 80.0*36.0*12.0mm , Storage Temperature -30-80℃, Operating Temperature -20-70℃, and Place of Origin SHEN ZHEN.



Support and Services:

We provide technical support and service for our Character Display LCD Module. Our team is committed to helping our customers get the most out of their Character Display LCD Module. We provide technical assistance to help customers quickly troubleshoot issues, as well as detailed user manuals, software updates, and other resources to help customers get the most out of their product. In addition, we provide a customer service team that is available to answer any questions about the product or provide assistance with installation and setup.



FAQ:

Character Display LCD Module

A: The brand name of Character Display LCD Module is RISING-SUN.
A: The model number of Character Display LCD Module is LCX1602A.
A: Character Display LCD Module is made in SHEN ZHEN.
A: The display size of Character Display LCD Module is 64.5x13,8mm.
A: The viewing angle of Character Display LCD Module is 6 o'clock.

If you need product details, please contact RISING-SUN.
