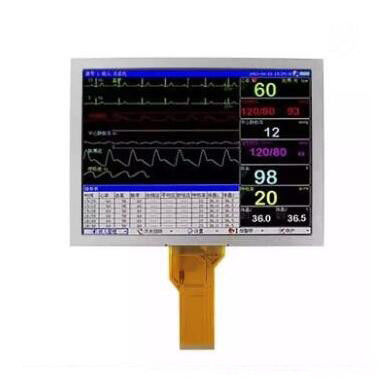

8" Tft Lcd Display Ej080na-05b Industry 800x600 Innolux Laptop 500:1 Touch Screen
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 pcs|
|Packaging Details:||Original packaging,conventional packaging|
|Delivery Time:||7 Days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||100000 Unit/Units per Month|
|Panel Size:||8 Inch Tft Lcd Display||Pixel Format:||RGB Vertical Stripe|
|Panel Type:||A-Si TFT-LCD , LCM||Active Area:||162(W)×121.5(H) Mm|
|Outline Dim.:||183(W)×141(H) ×5.9(D) Mm||Bezel Area:||164.8(W)×124.3(H) Mm|
|Brightness:||250 Cd/m² (Typ.)||Viewing Angle:||70/70/50/70 (Typ.)(CR≥10|
800x600 innolux laptop screen,
8 inch lcd panel 250cd/m2,
500:1 8 inch lcd touch screen
Innolux 8 inch LCD Panel 800x600 Resolution EJ080NA-05B LCD Controller Board
The EJ080NA-05B is an 8.0-inch a-Si TFT-LCD LCD module product launched by Innolux, It is fitted with a WLED backlight, No backlight drive, No Touch, Operating temperature of-20 ~ 70 C, Storage temperature of-30 ~ 80 C, Upper / Down, Left / right flip display, 6 / 8 gray scale optional, Surface fog, 2 in 1 FPC, DE/SYNC mode selectable, Display resolution of 800 (RGB)×600 (SVGA), The aspect ratio is 4:3 (width: height), Pixels are arranged in RGB vertical bars. Its display area size is 162 (wide) ×121.5(height)mm,183(wide)×141(height)×5.9(thick)mm, 164.8(wide)×124.3 (height) mm, and product net weight 241g (Typ.). The EJ080NA-05B has a Parallel RGB (1 ch, 6 / 8-bit) signal interface of 50 pins, an FPC connection, and a drive screen voltage of 3.3/10.4/16.0/-7.0V (Typ.) (VCC / AVDD / VGH / VGL). This product is widely used in industrial automation, electronic instrumentation, medical instruments, smart home appliances, financial equipment, on-board display, digital photo frame, portable DVD, video doorbell, video phone.
8" tft lcd display product details
|Diagonal Size||8" tft lcd display|
|Panel Type||a-Si TFT-LCD, LCM|
|Pixel Format||800(RGB)×600, SVGA, 125PPI|
|Configuration||RGB Vertical Stripe|
|Active Area||162(W)×121.5(H) mm|
183(W)×141(H) ×5.9(D) mm
|Bezel Area||164.8(W)×124.3(H) mm|
|Brightness||250 cd/m² (Typ.)|
|Contrast Ratio||500:1 (Typ.) (TM)|
|View Direction||6 o'clock|
|Response Time||10/15 (Typ.)(Tr/Td)|
|Viewing Angle||70/70/50/70 (Typ.)(CR≥10)|
|Operating Mode||TN, Normally White, Transmissive|
|Display Colors||262K/16.7M 50% NTSC|
|Lamp Type||3S9P WLED , 20K hours , Without Driver|
|Panel Weight||241g (Typ.)|
Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
8" tft lcd display features
The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!
1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.
2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.
3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.
4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.
5.Q:How about the warranty?
A: We supply one year warranty.
6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.
7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
