Innolux Industrial LCD Display Monitors 10.4in 1024x768 LCD CCFL Backlight
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | G104XCE-L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging,conventional packaging |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Type: | Lcd Panel, TFT | Display Size: | 10.4 |
|---|---|---|---|
| Pixel: | 1024×768 | Brightness: | 500cd/m2 |
| Colors: | 262K | Backlight: | CCFL |
| Interface: | LVDS | PIN: | 30PIN |
| High Light: | 1024*768 industrial lcd display monitors,Lcd Display Monitors 10.4in,1024x768 LCD CCFL |
||
Product Description

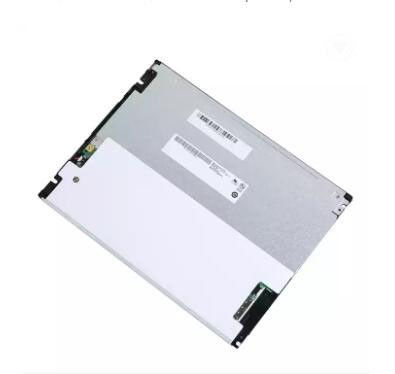

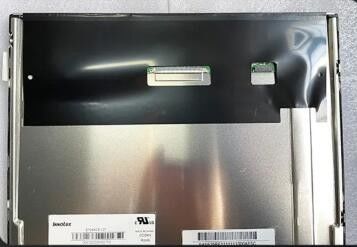

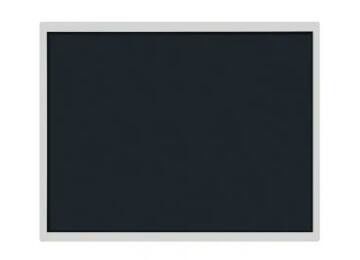

10.4 Inch Industrial 1024*768 Lcd Display Monitors G104XCE-L01 Innolux
The G104XCE-L01 is a 10.4-inch a-Si TFT-LCD LCD module launched by Innolux with an operating temperature of-30 ~ 85 C, a storage temperature of-30 ~ 85 C, and a vibration resistance of 1.5G (14.7 m / s²). Can be 180 degrees flipped display, 6 / 8 bit gray scale optional, display resolution of 1024 (RGB) 768 (XGA), width ratio of 4:3 (width: height), pixels using RGB vertical strip arrangement. Its display area is 210.4 (wide) 157.8 (height) mm, 225.5 (wide) 176.3 (height) 9.2 (thick) mm, and a net weight of 320 / 335g (Typ./Max.). Backlighting, this product uses WLED luminous side-in light source, the service life of the light source is 50K hours, including LED driver. The G104XCE-L01 has an LVDS (1 ch, 6 / 8-bit) signal interface, with a total of 30 pins, a terminal connection, and a drive screen voltage of 3.3V (Typ.). It has a typical vertical refresh rate with an Fv of 60Hz.This product is applicable to industrial automation, electronic instruments, medical instruments and other industries.
product details
|
features
The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts
have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!
faq
1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.
2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.
3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.
4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.
5.Q:How about the warranty?
A: We supply one year warranty.
6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.
7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
For more information on our products or if you have any questions, please send an inquiry now!
