10.4 Inch Innolux LCD Screen TFT And IPS Display Panel 500 Nits And LVDS

10.4 Inch Innolux LCD Screen TFT And IPS Display Panel 500 Nits And LVDS

Product Details:

Place of Origin: China
Brand Name: Innolux
Model Number: G104XCE-L01

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging,conventional packaging
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Display Size: 10.4 Inch Resolution: 1024(RGB)x768 , XGA
Type: TFT View Angle: 88/88/88/88 (Typ.)
Brightness: 500 Cd/m² Interface: LVDS (1 Ch, 6/8-bit) , 30 Pins
Backlight: WLED, 50k Hours, With LED Driver Colors: 262K
High Light:

tft and ips display LVDS

,

innolux LCD screen 500 Nits

,

10.4 Inch ips tft panel

Product Description

Original Innolux 10.4 inch IPS TFT LCD Panel Display For Industry G104XCE-L01 with 1024x768, 500 nits and LVDS



The G104XCE-L01 is a 10.4-inch a-Si TFT-LCD LCD module launched by Innolux with an operating temperature of-30 ~ 85 C, a storage temperature of-30 ~ 85 C, and a vibration resistance of 1.5G (14.7 m / s²). Can be 180 degrees flipped display, 6 / 8 bit gray scale optional, display resolution of 10245yre8 (RGB) 768 (XGA), width ratio of 4:3 (width: height), pixels using RGB vertical strip arrangement. Its display area is 210.4 (wide) 157.8 (height) mm, 225.5 (wide) 176.3 (height) 9.2 (thick) mm, and a net weight of 320 / 335g (Typ./Max.). Backlighting, this product uses WLED luminous side-in light source, the service life of the light source is 50K hours, including LED driver. The G104XCE-L01 has an LVDS (1 ch, 6 / 8-bit) signal interface, with a total of 30 pins, a terminal connection, and a drive screen voltage of 3.3V (Typ.). It has a typical vertical refresh rate with an Fv of 60Hz.This product is applicable to industrial automation, electronic instruments, medical instruments and other industries.


product details



Model Name G104XCE-L01
Screen Size 10.4 inch
Screen Type a-Si TFT-LCD , LCM
Pixel Number 1024(RGB)×768, XGA, 123PPI
Arrangement RGB Vertical Stripe
Active Area(mm) 210.4(W)×157.8(H) mm
Outline(mm) 225.5(W)×176.3(H) ×9.2(D) mm
Bezel Area(mm) 215.4(W)×161.8(H) mm
Treatment Antiglare
Luminance 500 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 88/88/88/88(CR≥10) Left / Right / Up / Down
Response 13/12 (Typ.)(Tr/Td) ms
Best View on Symmetry
Work Mode AAS, Normally Black, Transmissive
Color Depth 262K/16.2M 72% NTSC
Backlight WLED , 50K hours , With LED Driver
Net Weight 320/335g (Typ./Max.)
Used for Industrial Application
operating frequency 60Hz
Touchscreen without
Signal Type LVDS (1 ch, 6/8-bit) , 30 pins Connector
Voltage Supply 3.3V (Typ.)
Max. Ratings

Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C





features



The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts

have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!

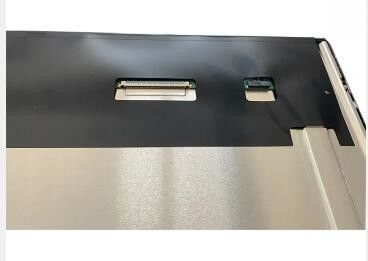

10.4 Inch Innolux LCD Screen TFT And IPS Display Panel 500 Nits And LVDS 0

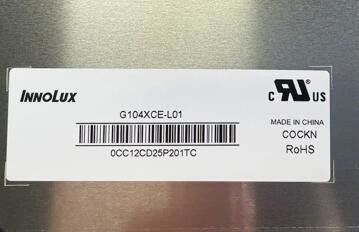

10.4 Inch Innolux LCD Screen TFT And IPS Display Panel 500 Nits And LVDS 1

faq



1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.



2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.



3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.



4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.



5.Q:How about the warranty?
A: We supply one year warranty.



6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.



7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
