Product Details:

Place of Origin: China
Brand Name: Innolux
Model Number: G104X1-L03

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging,conventional packaging
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Size: 10.4 Inch Pixel: 1024×768
Active Area: 210.4(W)×157.8(H) Mm Outline Dim.: 238.6(W)×175.8(H) ×7.97(D) Mm
Bezel Area: 215.4(W)×161.8(H) Mm Interface: LVDS
Backlight: WLED , 30K Hours , With LED Driver Interface Pins: 30 Pin
High Light:

1024x768 liquid crystal screens

,

10.4 inch lvds hdmi controller board

,

Innolux hdmi lvds controller board

Product Description

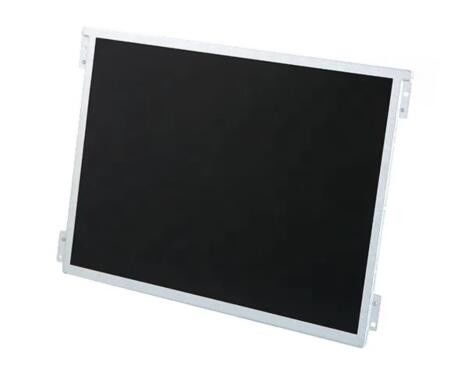

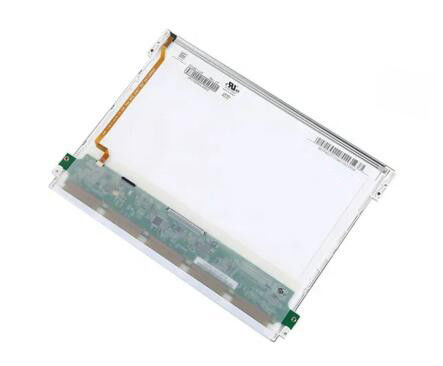

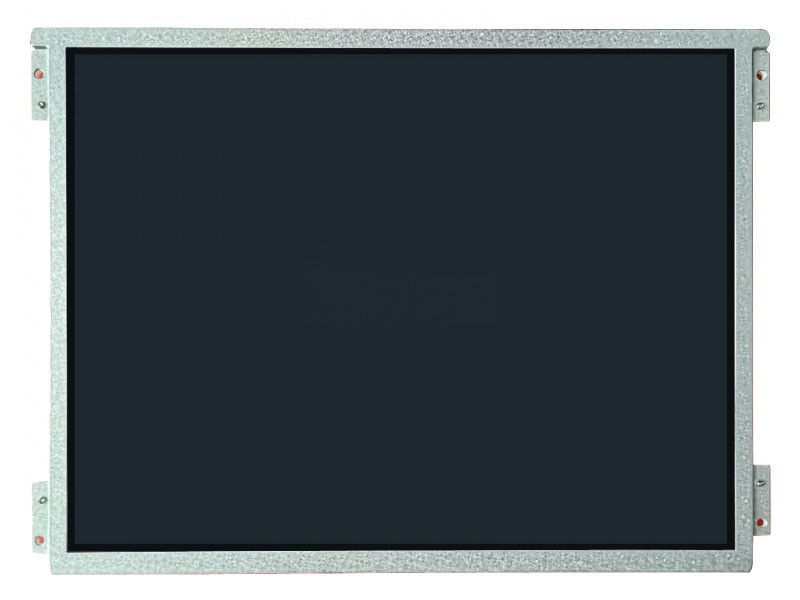

Innolux G104X1-L03 10.4 inch 1024*768 tft ips lcd panel display 10.4 inch lcd module with H-DMI to lvds controller board



Innolux launched the G104X1-L03 is a 10.4-inch LCD module product using a-Si TFT-LCD technology, It is fitted with a WLED backlight, With a LED driver backlight drive, No Touch, The 180-degree flip display, 6 / 8 Gray scale optional, Surface fog, It operates at a temperature of-20 ~ 70 C, Storage temperature of-20 ~ 70 C, 1.5G (14.7 m/s²), Display resolution of 1024 (RGB) 768 (XGA), The aspect ratio is 4:3 (width: height), Pixels were arranged in RGB vertical bars. Its display area size is 210.4157.8 (wide height) mm, visual size 215.4161.8 (wide height) mm, appearance size 238.6 (wide) 175.8 (height) 7.97 (thick) mm, product net weight 280g (Typ.). The G104X1-L03 has a LVDS (1 ch, 6 / 8-bit) signal interface, a total of 30 pins, a terminal connection, and a drive screen voltage of 3.3V (Typ.). This product is suitable for industrial automation, electronic instrumentation, medical instruments.


product details



Model Name G104X1-L03
Screen Size 10.4 inch
Screen Type LCM, a-Si TFT-LCD
Pixel Number 1024(RGB) x 768 (XGA)
Arrangement RGB Vertical Stripe
Active Area(mm) 210.4(H) x 157.8(V)
Outline(mm) 238.6(H)×175.8(V) ×7.97(D) mm
Bezel Area(mm) 215.4 (H) x 161.8 (V)
Treatment Anti-glare
Luminance 350 nit
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 88/88/88/88(CR≥10) Left / Right / Up / Down
Response 14/11 (Typ.)(Tr/Td) ms
Good View at Symmetry
Work Mode Super MVA, Normally Black, Transmissive
Color Depth 262K/16.2M 53% (CIE1931)
Backlight WLED , 30K hours , With LED Driver
Net Weight 280g (Typ.)
Used for Industrial Application
operating frequency 60Hz
Touchscreen without
Signal Type 30 pins LVDS (1 ch, 8-bit) , Connector
Voltage Supply 3.3V (Typ.)
Max. Ratings

Storage Temp.: -20 ~ 70°C  Operating Temp.: -20 ~ 70 °C





features



This product is suitable for on-board display, industrial automation, electronic instruments, medical instruments.

The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!

 Innolux 1024x768 Liquid Crystal Screens 10.4 Inch Lvds Hdmi Controller Board 0Innolux 1024x768 Liquid Crystal Screens 10.4 Inch Lvds Hdmi Controller Board 1



faq



1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.



2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.



3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.



4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.



5.Q:How about the warranty?
A: We supply one year warranty.



6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.



7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
