At070tn83 V1 TFT HD Display 7 Inch TFT LCD Touch Screen Drive Board OEM 800x480

At070tn83 V1 TFT HD Display 7 Inch TFT LCD Touch Screen Drive Board OEM 800x480

Product Details:

Place of Origin: China
Brand Name: Innolux
Model Number: AT070TN83 V.1

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging,conventional packaging
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Size: 7 Inch Resolution: 800(RGB)x480
Outline Size: 165(H)×104(V) ×5.8(D) Mm Active Area: 152.4(H)×91.44(V) Mm
Bezel Area: 155.3(H)×94.3(V) Mm Brightness: 300 Cd/m²
Backlight: WLED Interface: TTL (1 Ch, 6-bit) , 40 Pins
High Light:

At070tn83 V1 TFT HD Display

,

7 inch TFT LCD touch screen OEM

,

touch screen display board 800x480

Product Description

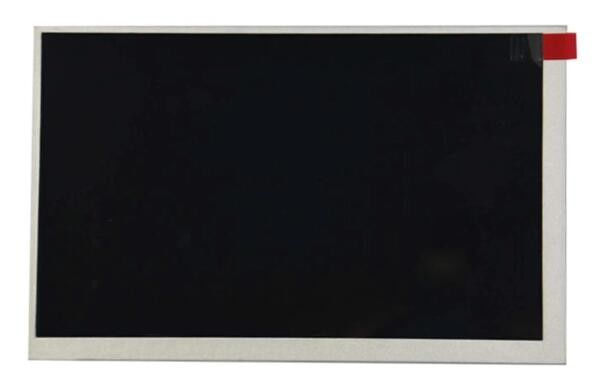

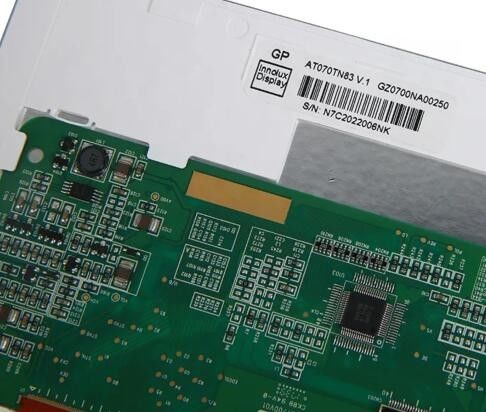

At070tn83 V1 7 Inch Industrial Lcd Screen 800*480 Equipped With Touch Panel Drive Board



AT070TN83 V.1 is a 7.0-inch LCD module product using a-Si TFT-LCD technology launched by Innolux. It is equipped with WLED backlight, including LED driver backlight drive, no touch, display resolution of 800 (RGB)× 480 (WVGA), width ratio of 15:9 (width: height), pixels with RGB vertical strip arrangement. Its display area size is 152.4×91.44 (wide×height) mm, visual size 155.3×94.3 (wide× height) mm, appearance size 165×104 (wide×height)×5.8 (thick) mm, surface treatment, product net weight 130g (Typ.). The AT070TN83 V.1 uses a TTL (1 ch, 6-bit) signal interface, with a total of 40 pins, a terminal connection, and a drive screen voltage of 3.3V (Typ.) (VCC). It operates at a temperature of-20-70 C and has a storage temperature of-30-80 C. This model is recommended for industrial instrumentation, medical instruments, and portable DVD.

product details



Diagonal Size 7.0 inch
Type a-Si TFT-LCD, LCM
Pixel Format 800(RGB)×480 [WVGA] 133PPI
Configuration RGB Vertical Stripe
Active Area 152.4(H)×91.44(V) mm
Outline Dim.

165(H)×104(V) ×5.8(D) mm

Bezel Area 155.3(H)×94.3(V) mm
Treatment Antiglare
Luminance 300 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
View Direction 6 o'clock
Response Time 10/15 (Typ.)(Tr/Td)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10)
Operating Mode TN, Normally White, Transmissive
Support Color 262K
Light Source WLED , 20K hours , With LED Driver
Weight 130g (Typ.)
Frame Rate 60Hz
Touch Panel Without

Interface Type

TTL (1 ch, 6-bit) , 40 pins Connector

Power Supply

3.3V (Typ.)(VCC)

Environment

Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

features



    The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!





At070tn83 V1 TFT HD Display 7 Inch TFT LCD Touch Screen Drive Board OEM 800x480 0



faq

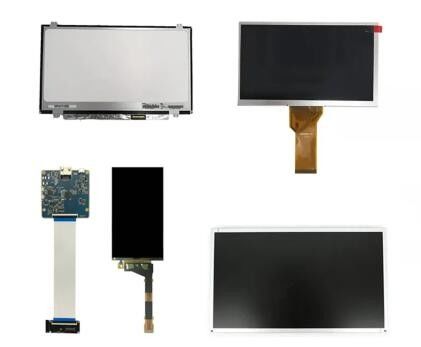

1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.



2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.



3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.



4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.



5.Q:How about the warranty?
A: We supply one year warranty.



6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.



7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
