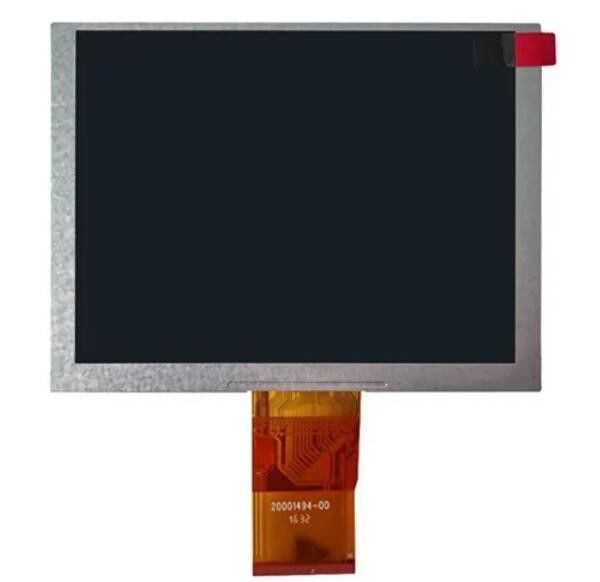

640x480 RGB FPC 50 Pin LCD Display 640x480 TFT VGA LCD Module

640x480 RGB FPC 50 Pin LCD Display 640x480 TFT VGA LCD Module

Product Details:

Place of Origin: China
Brand Name: Innolux
Model Number: ZJ050NA-08C

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging,conventional packaging
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Screen Size: 5.0 Inch Screen Type: LCM , A-Si TFT-LCD
Pixel Number: 640(RGB)×480 (VGA) 159PPI Active Area: 101.76 × 76.32 (H×V)
Outline: 117.65 × 88.43 × 5.9 (H×V×D) Luminance: 250 Cd/m² (Typ.)
Contrast Ratio: 500 : 1 (Typ.) (TM) Backlight: WLED
High Light:

640x480 50 pin LCD display

,

640x480 tft Rgb Fpc

,

vga lcd module 50pin

Product Description

5 Inch 640x480 Innolux Tft Lcd Screen Vga Modules Visual Doorbell Zj050na-08c Rgb Fpc 50 Pin



The ZJ050NA-08C is a 5.0-inch LCD module product using a-Si TFT-LCD technology. It is equipped with a WLED backlight, no backlight drive, and no touch. Up / down, left / right flip display, surface fog surface. It operates at temperatures of-20-70 C and has storage temperatures of-30-80 C. The ZJ050NA-08C displays a resolution of 640 (RGB) ×480 (VGA), an aspect ratio of 4:3 (width: height), and pixels in RGB vertical bars. Its display area size is 101.76×76.32 (width and height) mm, its appearance size is 117.65 (width)× 88.43 (height)× 5.9 (thick) mm, and its product net weight is 67.0g (Typ.). The ZJ050NA-08C has a Parallel RGB (1 ch, 8-bit) signal interface, a total of 50 pins, an FPC connection, and a drive voltage of 3.3/10.4/17.0/-7.0V (Typ.) (DVDD / AVDD / VGH / VGL).This model is suitable for electronic instrumentation, medical instruments,Handheld terminal,digital picture frames, video doorbell, video phone.



product details

Screen Size 5.0 inch
Screen Type a-Si TFT-LCD , LCM
Resolution 640(RGB)×480, VGA, 159PPI
Pixel Format RGB Vertical Stripe
Display Area
101.76(W)×76.32(H) mm
Outline Size 235(H)×145.8(V) ×6.4(D) mm
Brightness 250 (Typ.)(cd/m²)
Contrast Ratio 500:1 (Typ.) (TM)
Surface
Antiglare
Response Time 10/15 (Typ.)(Tr/Td)
Viewing Angle 70/70/50/70(Typ.)(CR≥10)
Operating Mode TN, Normally White, Transmissive
Best View on 6 o'clock
Support Color
16.7M 50% NTSC
Lamp Type WLED , 15K hours , Without Driver
Panel Weight 67g (Typ.)
Frame Rate 60Hz
Touch Panel Without
Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins FPC
Input Voltage 3.3/10.4/17.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Environment Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

features

This model is suitable for electronic instrumentation, medical instruments,Handheld terminal,digital picture frames, video doorbell, video phone.

The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts and efforts have been made to reduce errors, but the parameters are not fully correct. Please refer to the specifications!

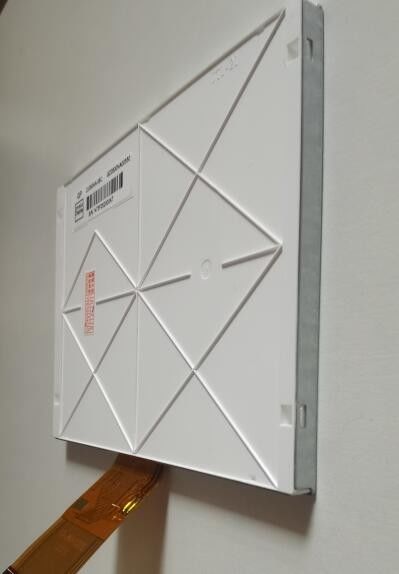

640x480 RGB FPC 50 Pin LCD Display 640x480 TFT VGA LCD Module 0

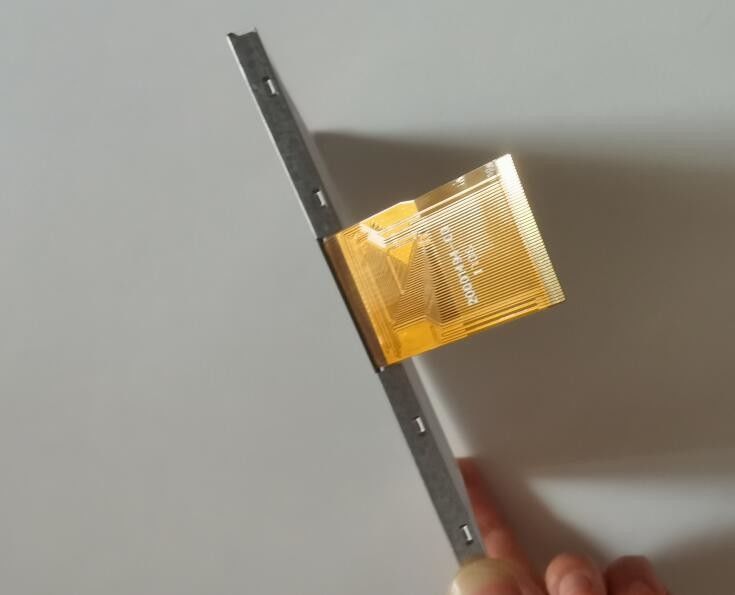

640x480 RGB FPC 50 Pin LCD Display 640x480 TFT VGA LCD Module 1



faq


1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.



2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.



3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.



4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.



5.Q:How about the warranty?
A: We supply one year warranty.



6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.



7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
