320x240 TFT HD Display Lq035nc111 3.5 Inch Capacitive Touch Screen For Handheld Navigation Digital

320x240 TFT HD Display Lq035nc111 3.5 Inch Capacitive Touch Screen For Handheld Navigation Digital

  • Highlight

    320x240 TFT HD Display

    ,

    Lq035nc111 3.5 inch tft lcd touch screen

    ,

    54 Pin 3.5 inch capacitive touch screen

  • Size
    3.5 Inch
  • Resolution
    320(RGB)*240 [QVGA]
  • Outline Dim
    76.9(H)*63.9(V) *3.46(D) Mm
  • Active Area
    70.08(H)*52.56(V) Mm
  • Bezel Area
    73.03(H)*55.50(V) Mm
  • Luminance
    300 Cd/m²
  • Contrast Ratio
    400:1 (Typ.) (TM)
  • Viewing Angle
    60/60/50/55 (Typ.)(CR≥10)
  • Place of Origin
    china
  • Brand Name
    Innolux
  • Model Number
    LQ035NC111
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Original packaging,conventional packaging
  • Delivery Time
    7 Days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    10000 Unit/Units per Month

320x240 TFT HD Display Lq035nc111 3.5 Inch Capacitive Touch Screen For Handheld Navigation Digital

3.5"Qvga Tft 320x240 Lq035nc111 54 Pin Lcd For Handheld Rugged Pda Portable Navigation Digital

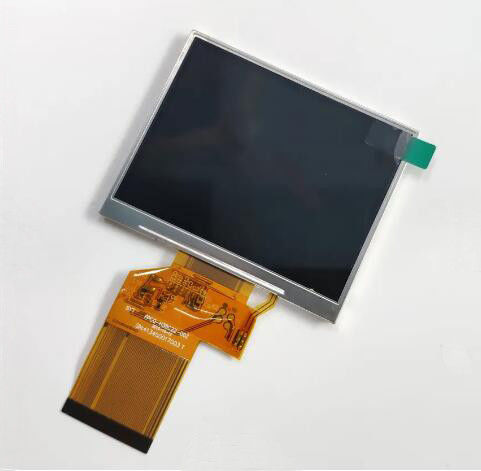

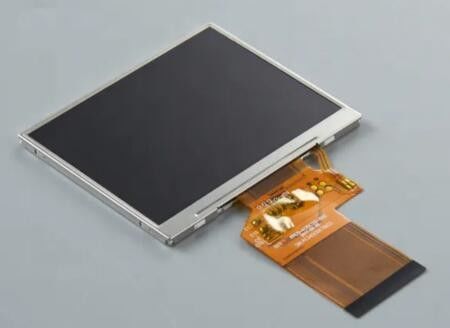

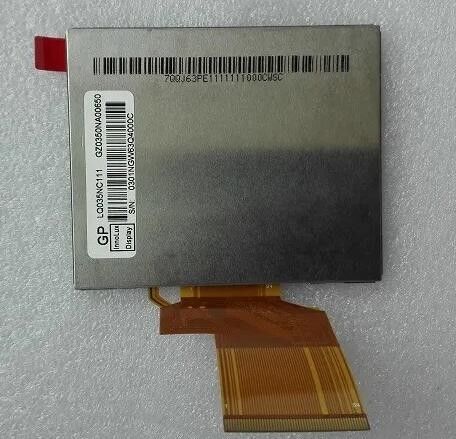

LQ035NC111 is a 3.5-inch LCD module product launched by Innolux, which is equipped with WLED backlight, no backlight drive, no touch, working temperature of-20 ~ 70 C, and storage temperature of-30 ~ 80 C. This product has been qualified as a HX8238-D driver IC. LQ035NC111 displays a resolution of 320 (RGB)× 240 (QVGA), an aspect ratio of 4:3 (width: height), and pixels in RGB vertical bars. Its display area size is 70.08 (wide)× 52.56 (height) mm, 76.9 (wide)× 63.9 (height) ×3.46 (thick) mm, 73.03 (wide)× 55.50 (height) mm, fog surface, product net weight 30.0g (Typ.). The LQ035NC111 uses a Digital RGB (8 / 24-bit) + SPI, CCIR601 / 656 signal interface, a total of 54 pins, an FPC connection, and a drive voltage of 3.3V (Typ.).Widely used in electronic instruments, medical instruments, handheld terminals, vehicle display, digital camera, digital camera and other products.



product details





Screen Size  3.5 inch
Screen Type a-Si TFT-LCD, LCM
Pixel Format 320(RGB)×240, QVGA, 115PPI
Configuration RGB Vertical Stripe
Display Area
70.08(W)×52.56(H) mm
Outline Size 76.9(W)×63.9(H) ×3.46(D) mm
Bezel Area
73.03(W)×55.50(H) mm
Brightness 300 (Typ.)(cd/m²)
Contrast Ratio 400:1 (Typ.) (TM)
Treatment
Antiglare
Response Time 10/15 (Typ.)(Tr/Td)
Viewing Angle 60/60/50/55(Typ.)(CR≥10)
Operating Mode TN, Normally White, Transmissive
Support Color
16.7M 50% NTSC
Lamp Type 6S1P WLED , 10K hours , Without Driver
Panel Weight 30g (Typ.)
Touch Panel Without
Signal Interface Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins FPC
Input Voltage 3.3V (Typ.)
Environment Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

features





Widely used in electronic instruments, medical instruments, handheld terminals, vehicle display, digital camera, digital camera and other products.

The panel parameters displayed in this page are entered by our electronic engineers according to the specifications, and we have tried to reduce the errors, but the parameters are not fully correct, please refer to the specifications!



320x240 TFT HD Display Lq035nc111 3.5 Inch Capacitive Touch Screen For Handheld Navigation Digital 0



faq


1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.



2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.



3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.



4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.



5.Q:How about the warranty?
A: We supply one year warranty.



6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.



7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
