Lq035nc111 TFT Display 3.5 Inch LCD Module 320*240 For Industrial 3.5"TFT LCD
Product Details:
Place of Origin: | china |
Brand Name: | Innolux |
Model Number: | LQ035NC111 TP |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging,conventional packaging |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 10000 Unit/Units per Month |
Detail Information |
|||
Size: | 3.5 Inch | Pixel: | 320(RGB)×240(QVGA)115PPI |
---|---|---|---|
Outline(mm): | 76.9×63.9×3.46 (H×V×D) | Active Area(mm): | 70.08 × 52.56 (H×V) |
Bezel Area(mm): | 73.03 × 55.50 (H×V) | Good View At: | 6 O'clock |
Luminance: | 300 Cd/m² (Typ.) | Viewing Angle: | 60/60/50/55 (Typ.)(CR≥10) |
High Light: | Lq035nc111 3.5 inch LCD module,3.5 inch tft lcd display Industrial,tft display 3.5 inch 320*240 |
Product Description
Lcd Screen Panel 3.5 Inch Lcd Module Lq035nc111 320*240 Suitable Industrial Display

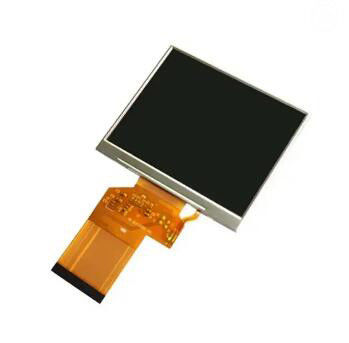

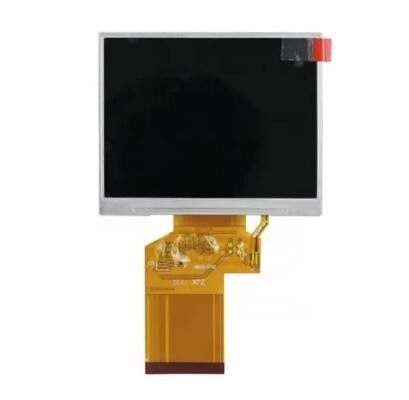

LQ035NC111 is a 3.5-inch LCD module product launched by Innolux, which is equipped with WLED backlight, no backlight drive, no touch, working temperature of-20 ~ 70 C, and storage temperature of-30 ~ 80 C. This product has been qualified as a HX8238-D driver IC. LQ035NC111 displays a resolution of 320 (RGB)× 240 (QVGA), an aspect ratio of 4:3 (width: height), and pixels in RGB vertical bars. Its display area size is 70.08 (wide)× 52.56 (height) mm, 76.9 (wide)× 63.9 (height) ×3.46 (thick) mm, 73.03 (wide)× 55.50 (height) mm, fog surface, product net weight 30.0g (Typ.). The LQ035NC111 uses a Digital RGB (8 / 24-bit) + SPI, CCIR601 / 656 signal interface, a total of 54 pins, an FPC connection, and a drive voltage of 3.3V (Typ.).Widely used in electronic instruments, medical instruments, handheld terminals, vehicle display, digital camera, digital camera and other products.
product details
Screen Size | 3.5 inch |
Screen Type | a-Si TFT-LCD, LCM |
Pixel Format | 320(RGB)×240, QVGA, 115PPI |
Configuration | RGB Vertical Stripe |
Display Area
|
70.08(W)×52.56(H) mm |
Outline Size | 76.9(W)×63.9(H) ×3.46(D) mm |
Bezel Area
|
73.03(W)×55.50(H) mm |
Brightness | 300 (Typ.)(cd/m²) |
Contrast Ratio | 400:1 (Typ.) (TM) |
Treatment
|
Antiglare |
Response Time | 10/15 (Typ.)(Tr/Td) |
Viewing Angle | 60/60/50/55(Typ.)(CR≥10) |
Operating Mode | TN, Normally White, Transmissive |
Support Color
|
16.7M 50% NTSC |
Lamp Type | 6S1P WLED , 10K hours , Without Driver |
Panel Weight | 30g (Typ.) |
Touch Panel | Without |
Signal Interface | Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins FPC |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
features
Widely used in electronic instruments, medical instruments, handheld terminals, vehicle display, digital camera, digital camera and other products.
The panel parameters displayed in this page are entered by our electronic engineers according to the specifications, and we have tried to reduce the errors, but the parameters are not fully correct, please refer to the specifications!
faq
1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.
2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.
3.Q: If the customized do you support?

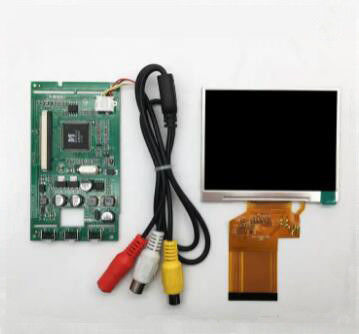

A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.
4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.
5.Q:How about the warranty?
A: We supply one year warranty.
6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.
7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
