480*272 Industrial TFT Panel LCD Display Module 500:1 At050tn34 Tp
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | AT050TN34 V.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging,conventional packaging |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Size: | 5 Inch | Pixel: | 480×272 |
|---|---|---|---|
| Outline(mm): | 120.7 × 75.8 × 4.45 (H×V×D) | Active Area(mm): | 110.88 × 62.832 (H×V) |
| Bezel Area(mm): | 113.90 × 65.85 (H×V) | Luminance: | 400 |
| Contrast Ratio: | 500 : 1 | Lamp Type: | WLED 6S2P |
| High Light: | 480*272 Industrial TFT panel,lcd display module 500:1,At050tn34 Tp tft lcd display |
||
Product Description

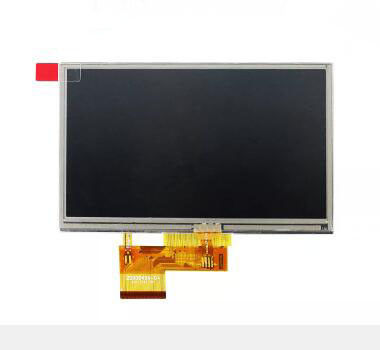

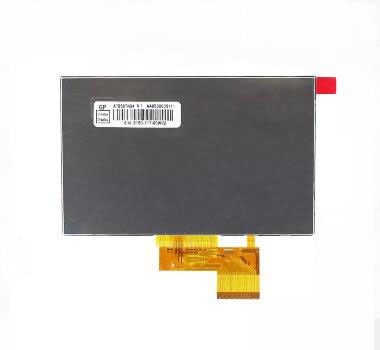

5'' For Innolux 480*272 Lcd Screen Display Module Panel At050tn34 V.1 At050tn34
AT050TN34 V.1 is a 5.0" diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, without backlight driver, touchscreen 4-wire Resistive Touch, F/G. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 85°C . It's general features are summarized by Panelook in the following: With Touch, WLED Backlight, Matte , 3 in 1 FPC. Based on its features, Panelook recommend that this model be applied to Portable Navigation, MP3 PMP etc.
product details
| Module number | AT050TN34 V.1 |
| Resolution |
480(RGB)×272 (WQVGA) 109PPI |
|
Bezel Area(mm) |
113.90 × 65.85 (H×V) |
| Active Area |
110.88 × 62.832 (H×V) |
| View angle |
70/70/50/70 |
|
Arrangement |
RGB Vertical Stripe |
| Treatment |
Antiglare, Hard coating (3H) |
| Electrical Interface | Parallel RGB |
| Brightness | 400(cd/m2) |
| Contrast ratio | 500:1 |
| Outline dimension |
120.7 × 75.8 × 4.45 (H×V×D) |
| Backlight |
6S2P WLED , 20K hours , No Driver |
|
Good View at |
6 o'clock |
| Display mode | TN, Normally White, Transmissive |
|
Voltage Supply |
1.8/3.3V (Typ.)(DVDD/AVDD) |
| Display Colors | 16.7M |
|
Max. Ratings |
Storage Temp.: -30 ~ 85 °C Operating Temp.: -20 ~ 70 °C |
|
Touchscreen |
4-wire Resistive Touch, F/G |
|
Signal Type |
Parallel RGB (1 ch, 8-bit) , 67 pins FPC |
features
This model is suitable for electronic instrumentation,Handheld terminal, on-board display, video phone, MP3, PMP.
The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!
faq
1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.
2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.
3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.
4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.
5.Q:How about the warranty?
A: We supply one year warranty.
6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.
7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
