|Size:||10.1 Inch||Pixel:||1280(RGB)×800, WXGA, 149PPI|
|Outline Size:||229.46(W)×149.1(H) ×4.66(D) Mm||Display Area:||216.96(W)×135.6(H) Mm|
|Pixel Format:||RGB Vertical Stripe||Panel Type:||A-Si TFT-LCD , LCM|
|Brightness:||550 (Typ.)(cd/m²)||Surface:||Hard Coating|
Industrial TFT panel Ej101ia-01g,
innolux LCD display Vertical Stripe,
10 inch lcd module EJ101IA-01G
Innolux Lcd Screen 10 Inch Tft Display Modules Touch Screen Panel Ej101ia-01g Video Surveillance Equipment

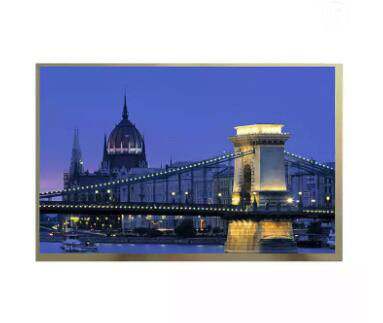

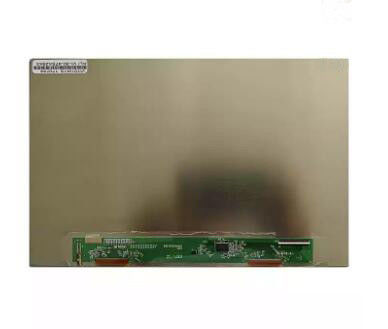

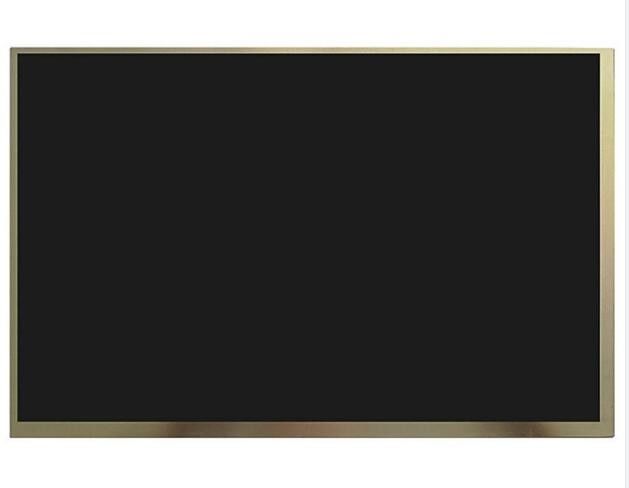

EJ101IA-01G is a 10.1-inch LCD module product with A-Si TFT-LCD technology introduced by Innolux. It is equipped with WLED backlight, no backlight drive, no touch, display resolution of 1280 (RGB) 800 (WXGA), width ratio of 16:10 (width: height), and pixels with RGB vertical strip arrangement. Its display area size is 216.96135.6 (width and height) mm, its appearance size is 229.46149.1 (width and height) 4.66 (thick) mm, its surface treatment is Hard coating, and its product net weight is 183g (Typ.). The EJ101IA-01G has a LVDS (1 ch, 8-bit) signal interface of 40 pins, a terminal connection, and a drive screen voltage of 2.5/8.2/12.5/-13V (Typ.) (VDD / AVDD / VGH / VGL). It operates at a temperature of-10-60 C with a storage temperature of-20-70 C.This product is widely used in tablet computers, electronic instruments, medical instruments, smart home appliances, commercial display.
|Screen Size||10.1 inch|
|Screen Type||LCM , a-Si TFT-LCD|
|Pixel Format||1280(RGB)×800, WXGA, 149PPI|
|Configuration||RGB Vertical Stripe|
|Display Area||216.96(W)×135.6(H) mm|
229.46(W)×149.1(H) ×4.66(D) mm
|Contrast Ratio||1000:1 (Typ.) (TM)|
|Response Time||10/15 (Typ.)(Tr/Td)|
|Viewing Angle||85/85/85/85 (Typ.)(CR≥10)|
|Operating Mode||IPS, Normally Black, Transmissive|
|Display Colors||16.7M 50% NTSC|
|Lamp Type||3S10P WLED , 15K hours , Without Driver|
|Panel Weight||183g (Typ.)|
LVDS (1 ch, 8-bit) , 40 pins Connector
Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C
The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!
1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.
2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.
3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.
4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.
5.Q:How about the warranty?
A: We supply one year warranty.
6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.
7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
