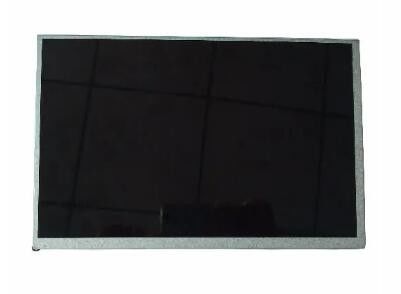

Ej101ia-01g 10.1 Inch Lcd Screen Industrial TFT Panel 1280x800 Resolution Lvds Innolux

Ej101ia-01g 10.1 Inch Lcd Screen Industrial TFT Panel 1280x800 Resolution Lvds Innolux

Product Details:

Place of Origin: China
Brand Name: Innolux
Model Number: EJ101IA-01G

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging,conventional packaging
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Size: 10.1 Inch Pixel: 1280×800, WXGA, 149PPI
Outline: 229.46(W)×149.1(H) ×4.66(D) Mm Display Area: 216.96(W)×135.6(H) Mm
Panel Type: A-Si TFT-LCD , LCM Brightness: 350 (Typ.)(cd/m²)
Contrast Ratio: 1000:1 Lamp Type: WLED
High Light:

Industrial TFT panel 1280x800

,

Ej101ia-01g 10.1 inch lcd screen

,

10.1 inch lcd panel Lvds

Product Description

Ej101ia-01g 10.1 Inch Lcd Screen Display Panel Lvds 1280x800 Resolution Innolux ctp



EJ101IA-01G is a 10.1-inch LCD module product with A-Si TFT-LCD technology introduced by Innolux. It is equipped with WLED backlight, no backlight drive, no touch, display resolution of 1280 (RGB) 800 (WXGA), width ratio of 16:10 (width: height), and pixels with RGB vertical strip arrangement. Its display area size is 216.96135.6 (width and height) mm, its appearance size is 229.46149.1 (width and height) 4.66 (thick) mm, its surface treatment is Hard coating, and its product net weight is 183g (Typ.). The EJ101IA-01G has a LVDS (1 ch, 8-bit) signal interface of 40 pins, a terminal connection, and a drive screen voltage of 2.5/8.2/12.5/-13V (Typ.) (VDD / AVDD / VGH / VGL). It operates at a temperature of-10-60 C with a storage temperature of-20-70 C.This product is widely used in tablet computers, electronic instruments, medical instruments, smart home appliances, commercial display.



product details



Screen Size 10.1 inch
Screen Type LCM , a-Si TFT-LCD
Pixel Format 1280(RGB)×800, WXGA, 149PPI
Configuration RGB Vertical Stripe
Display Area 216.96(W)×135.6(H) mm
Outline Size

229.46(W)×149.1(H) ×4.66(D) mm

Brightness 350 (Typ.)(cd/m²)
Contrast Ratio 1000:1 (Typ.) (TM)
Surface Hard coating
Response Time 10/15 (Typ.)(Tr/Td)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
Operating Mode IPS, Normally Black, Transmissive
Display Colors 16.7M 50% NTSC
Lamp Type 3S10P WLED , 15K hours , Without Driver
Panel Weight 183g (Typ.)
Frame Rate 60Hz
Touch Panel Without

Signal Interface

LVDS (1 ch, 8-bit) , 40 pins Connector

Input Voltage

2.5/8.2/12.5/-13V (Typ.)(VDD/AVDD/VGH/VGL)

Environment

Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C



features

    The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!

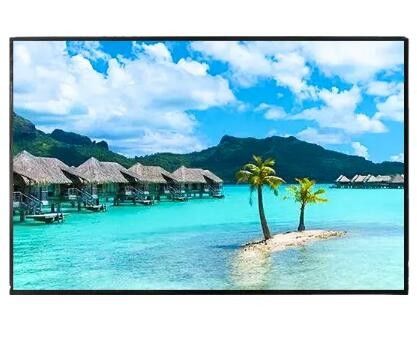

Ej101ia-01g 10.1 Inch Lcd Screen Industrial TFT Panel 1280x800 Resolution Lvds Innolux 0

faq



1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.



2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.



3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.



4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.



5.Q:How about the warranty?
A: We supply one year warranty.



6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.



7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
