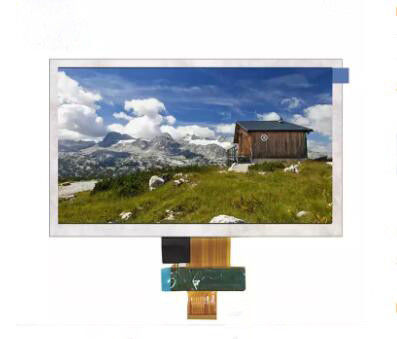

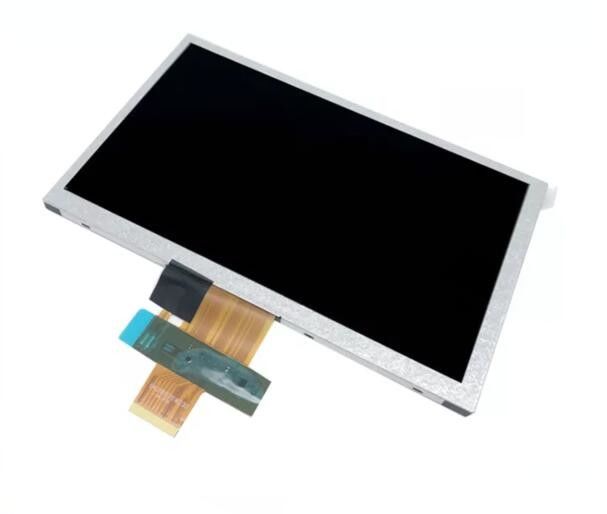

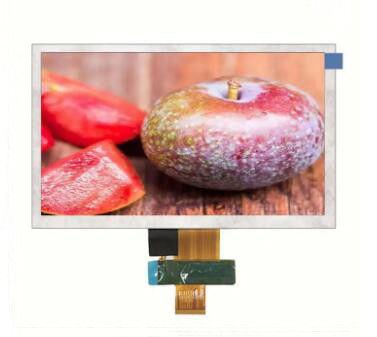

8 Inch LCM LCD Display Module 1024x600 500:1 1000:1 16.7m Wled Lvds

8 Inch LCM LCD Display Module 1024x600 500:1 1000:1 16.7m Wled Lvds

Product Details:

Place of Origin: China
Brand Name: Innolux
Model Number: NJ080IA-10D

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging,conventional packaging
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Size: 8 Inch Pixel Number: 1024(RGB)×600, WSVGA
Type: A-Si TFT-LCD , LCM Pixel Format: RGB Vertical Stripe
Outline: 192.8(W)×116.9(H) ×6.7(D) Mm Bezel Opening: 180.44(W)×103.16(H) Mm
Display Area: 176.64(W)×99.36(H) Mm Brightness: 500 (Typ.)(cd/m²)
High Light:

LCM LCD display 500:1

,

lcm lcd module 1000:1

,

8 inch lcm display module

Product Description

8 inch lcm 1024x600 500 1000:1 16.7m wled lvds nj080ia-10d lcd display



The NJ080IA-10D launched by Innolux is an 8.0-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, no backlight drive, no touch, upper / bottom, left / right flip display, and surface fog surface. It has an operating temperature of-20 ~ 70 C, storage temperature of-30 ~ 80 C, display resolution of 1024 (RGB)× 600 (WSVGA), aspect ratio of 16:9 (width: high), and pixels are arranged in RGB vertical bars. Its display area size is 176.64×99.36 (wide height) mm, visual size 180.44×103.16 (wide height) mm, 192.8 (wide)× 116.9 (height)× 6.7 (thick) mm, fog surface, net weight of 184g (Typ.). The NJ080IA-10D uses an LVDS (1 ch, 8-bit) signal interface, with a total of 40 pins, an FPC connection, and a drive screen voltage of 3.3/13/24/-5.6V (Typ.) (DVDD / AVDD / VGH / VGL). This product is used in vehicle display, electronic instruments, medical instruments, digital photo frame, portable DVD and other products.



product details



Screen Size 8.0 inch
Screen Type LCM , a-Si TFT-LCD
Pixel Format 1024(RGB)×600, WSVGA, 148PPI
Configuration RGB Vertical Stripe
Display Area 176.64(W)×99.36(H) mm
Outline Size

192.8(W)×116.9(H) ×6.7(D) mm

Bezel Opening 180.44(W)×103.16(H) mm
Brightness 500 (Typ.)(cd/m²)
Contrast Ratio 1000:1 (Typ.) (TM)
Best View on Symmetry
Response Time 25 (Typ.)(Tr+Td)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
Operating Mode AAS, Normally Black, Transmissive
Display Colors 16.7M 70% NTSC
Lamp Type 3S9P WLED , 20K hours , Without Driver
Panel Weight 184g (Typ.)
Frame Rate 60Hz
Touch Panel Without

Signal Interface

LVDS (1 ch, 8-bit) , 40 pins FPC

Input Voltage

3.3/13/24/-5.6V (Typ.)(DVDD/AVDD/VGH/VGL)

Environment

Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C



features



    The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!

8 Inch LCM LCD Display Module 1024x600 500:1 1000:1 16.7m Wled Lvds 0

faq



1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.



2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.



3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.



4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.



5.Q:How about the warranty?
A: We supply one year warranty.



6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.



7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
