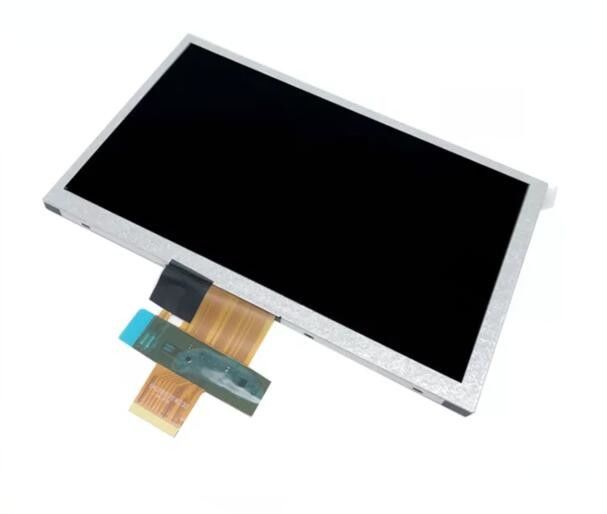

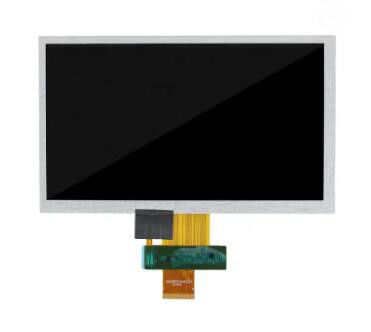

High Brightness Innolux 1024x600 TFT HD Display 8 Inch 40Pins FPC Interface For Tablet PC
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | NJ080IA-10D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging,conventional packaging |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Size: | 8 Inch | Pixel: | 1024(RGB)×600 |
|---|---|---|---|
| Bezel Opening: | 180.44(W)×103.16(H) Mm | Display Area: | 176.64(W)×99.36(H) Mm |
| Outline: | 192.8(W)×116.9(H) ×6.7(D) Mm | Brightness: | 500 (Typ.)(cd/m²) |
| Contrast Ratio: | 1000 : 1 (Typ.) (TM) | Backlight: | WLED |
| High Light: | High Brightness innolux lcd display,1024x600 TFT HD Display,8 inch lcd display 40Pins |
||
Product Description
8 Inch 1024x600 Innolux Nj080ia-10d High Brightness 500 Ips Lvds 40 Pins Fpc Interface Tft Lcd Module For Tablet Pc
The NJ080IA-10D launched by Innolux is an 8.0-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, no backlight drive, no touch, upper / bottom, left / right flip display, and surface fog surface. It has an operating temperature of-20 ~ 70 C, storage temperature of-30 ~ 80 C, display resolution of 1024 (RGB)× 600 (WSVGA), aspect ratio of 16:9 (width: high), and pixels are arranged in RGB vertical bars. Its display area size is 176.64×99.36 (wide height) mm, visual size 180.44×103.16 (wide height) mm, 192.8 (wide)× 116.9 (height)× 6.7 (thick) mm, fog surface, net weight of 184g (Typ.). The NJ080IA-10D uses an LVDS (1 ch, 8-bit) signal interface, with a total of 40 pins, an FPC connection, and a drive screen voltage of 3.3/13/24/-5.6V (Typ.) (DVDD / AVDD / VGH / VGL). This product is used in vehicle display, electronic instruments, medical instruments, digital photo frame, portable DVD and other products.
product details
| Screen Size | 8.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Format | 1024(RGB)×600, WSVGA, 148PPI |
| Configuration | RGB Vertical Stripe |
| Display Area | 176.64(W)×99.36(H) mm |
| Outline Size |
192.8(W)×116.9(H) ×6.7(D) mm |
| Bezel Opening | 180.44(W)×103.16(H) mm |
| Brightness | 500 (Typ.)(cd/m²) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | AAS, Normally Black, Transmissive |
| Display Colors | 16.7M 70% NTSC |
| Lamp Type | 3S9P WLED , 20K hours , Without Driver |
| Panel Weight | 184g (Typ.) |
| Frame Rate | 60Hz |
| Touch Panel | Without |
|
Signal Interface |
LVDS (1 ch, 8-bit) , 40 pins FPC |
|
Input Voltage |
3.3/13/24/-5.6V (Typ.)(DVDD/AVDD/VGH/VGL) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
features
The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!
faq
1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.
2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.
3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.
4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.
5.Q:How about the warranty?
A: We supply one year warranty.
6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.
7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
