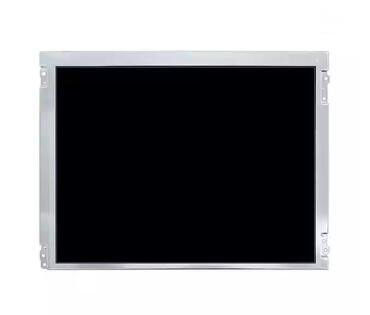

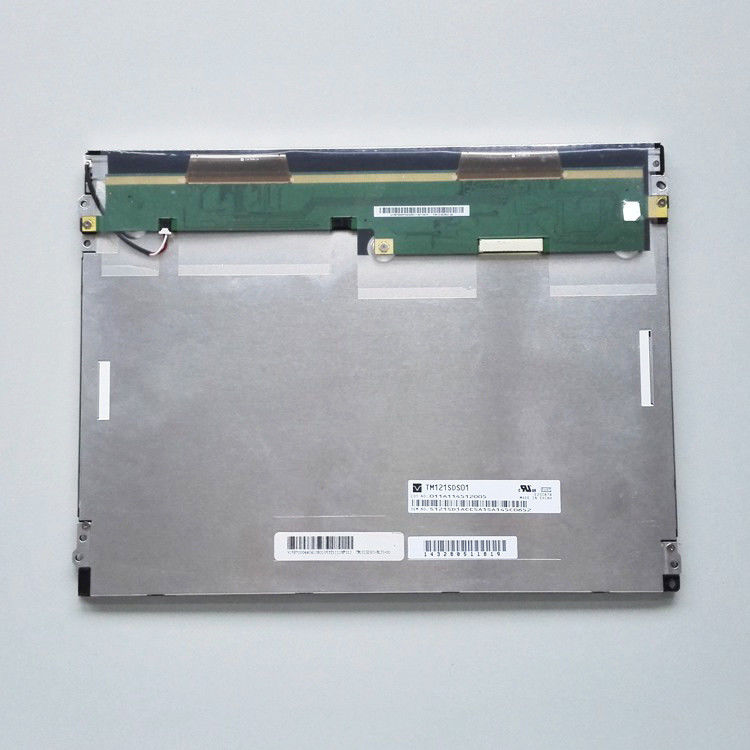

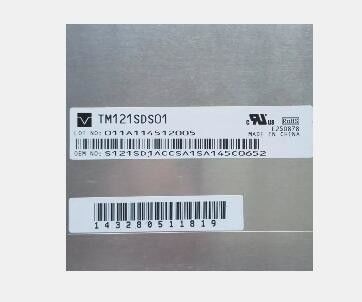

Industrial Tianma 12.1 Inch LCD Monitor TM121SDS01 For Medical Devices

Industrial Tianma 12.1 Inch LCD Monitor TM121SDS01 For Medical Devices

  • Highlight

    12.1 tft lcd monitor Medical Devices

    ,

    12.1 inch LCD monitor TM121SDS01

    ,

    lcd 12.1 inch Tianma

  • Size
    12.1 Inch
  • Pixel
    800×600
  • Outline
    279 × 209 × 9.3 (H×V×D)
  • Active Area
    246 × 184.5 (H×V)
  • Bezel Area
    249.05 × 188.3 (H×V)
  • Luminance
    450 Cd/m² (Typ.)
  • Contrast Ratio
    700:1 (Typ.) (TM)
  • Light Source
    LED
  • Place of Origin
    China
  • Brand Name
    Tianma
  • Model Number
    TM121SDS01
  • Minimum Order Quantity
    1 pcs
  • Price
    Negotiable
  • Packaging Details
    Original packaging,conventional packaging
  • Delivery Time
    7 Days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    100000 Unit/Units per Month

Industrial Tianma 12.1 Inch LCD Monitor TM121SDS01 For Medical Devices

industrial 12.1 inch 800*600 Tianma display TM121SDS01 tft lcd panel Industry Medical Devices



The TM104SDH01-00 is a 10.4-inch a-Si TFT-LCD LCD module from Tianma , which is equipped with a WLED backlight, no backlight drive, and no touch. Operating temperature is-20 ~ 70 C and storage temperature is-30 ~ 80 C. The display resolution is 800 (RGB) 600 (SVGA), the aspect ratio is 4:3 (width: height), and the pixels are arranged in RGB vertical bars. Its display area size is 211.2 (wide) 158.4 (height) mm, 236 (width) 176.9 (height) 5.9 (thickness) mm, 215.0 (width) 162.0 (height) mm, surface treatment is mist, Hard coating (3H), product net weight 288g. The TM104SDH01-00 has an LVDS (1 ch, 6-bit) signal interface, with a total of 20 pins, a terminal connection, and a drive screen voltage of 3.3V (Typ.). It has a typical vertical refresh rate of Fv of 60Hz. This product is applicable to industrial automation, electronic instruments, medical instruments and other industries.


product details



Model Name

TM121SDS01

Screen Size

12.1 inch

Screen Type

LCM, a-Si TFT-LCD

Pixel Number

800(RGB)×600 (SVGA) 82PPI

Arrangement

RGB Vertical Stripe

Active Area(mm)

246 × 184.5 (H×V)

Outline(mm)

279 × 209 × 9.3 (H×V×D)

Bezel Area(mm)

249.05 × 188.3 (H×V)

Treatment

Antiglare

Brightness

450 cd/m² (Typ.)

Contrast Ratio

700:1 (Typ.) (TM)

Viewing Angle

80/80/65/75 (Typ.)(CR≥10)

Response Time

10/25 (Typ.)(Tr/Td) ms

Work Mode

TN, Normally White, Transmissive

Color Depth

262K/16.2M 55% NTSC

Backlight

10S2P WLED , 50K hours , With LED Driver

Net Weight

540g (Typ.)

Used for

Industrial Use

operating frequency

60Hz

Touchscreen

without

Signal Type

LVDS (1 ch, 6/8-bit) , Connector 20 pins

Voltage Supply

3.3V (Typ.)

Max. Ratings

Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C



features



The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts

have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!





 Industrial Tianma 12.1 Inch LCD Monitor TM121SDS01 For Medical Devices 0





faq



1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.



2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.



3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.



4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.



5.Q:How about the warranty?
A: We supply one year warranty.



6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.



7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
