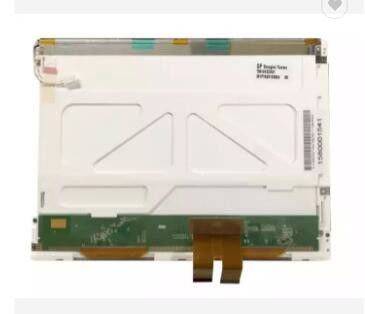

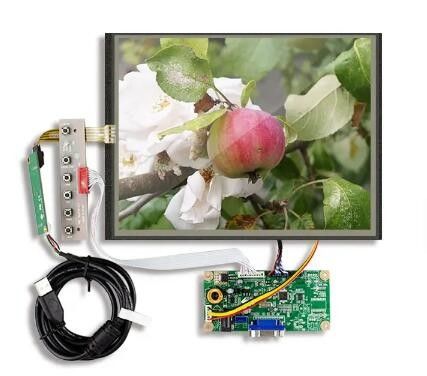

20 Pin Tm104sdh01 TFT LCD Monitor 10.4 Inch Lvds Display Panel Svga

20 Pin Tm104sdh01 TFT LCD Monitor 10.4 Inch Lvds Display Panel Svga

  • Highlight

    TFT LCD Monitor 10.4 Inch

    ,

    lvds display panel Svga

    ,

    20 pin lcd Tm104sdh01

  • Size
    10.4 Inch
  • Pixel Format
    800(RGB)×600 (SVGA) 96PPI
  • Active Area
    211.2 × 158.4 (H×V)(mm)
  • Outline
    236 × 176.9 × 5.9 (H×V×D) (mm)
  • Bezel Area
    215.0 × 162.0 (H×V)(mm)
  • Luminance
    400 Cd/m² (Typ.)
  • Contrast Ratio
    400:1 (Typ.) (TM)
  • Interface
    LVDS (1 Ch, 6-bit) , 20 Pins
  • Place of Origin
    China
  • Brand Name
    Tianma
  • Model Number
    TM104SDH01
  • Minimum Order Quantity
    1 pcs
  • Price
    Negotiable
  • Packaging Details
    Original packaging,conventional packaging
  • Delivery Time
    7 Days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    100000 Unit/Units per Month

20 Pin Tm104sdh01 TFT LCD Monitor 10.4 Inch Lvds Display Panel Svga

10.4 Inch 800x600 Svga Tft Lcd Panel Tianma Screen Tm104sdh01 10.4" 400 Nit 20 Pin Lvds

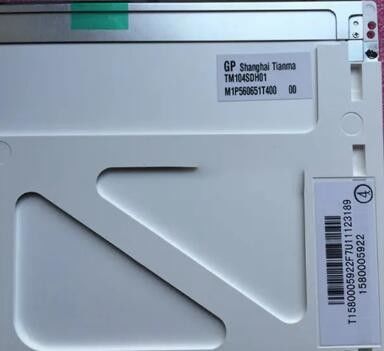

The TM104SDH01-00 is a 10.4-inch a-Si TFT-LCD LCD module from Tianma , which is equipped with a WLED backlight, no backlight drive, and no touch. Operating temperature is-20 ~ 70 C and storage temperature is-30 ~ 80 C. The display resolution is 800 (RGB) 600 (SVGA), the aspect ratio is 4:3 (width: height), and the pixels are arranged in RGB vertical bars. Its display area size is 211.2 (wide) 158.4 (height) mm, 236 (width) 176.9 (height) 5.9 (thickness) mm, 215.0 (width) 162.0 (height) mm, surface treatment is mist, Hard coating (3H), product net weight 288g. The TM104SDH01-00 has an LVDS (1 ch, 6-bit) signal interface, with a total of 20 pins, a terminal connection, and a drive screen voltage of 3.3V (Typ.). It has a typical vertical refresh rate of Fv of 60Hz. This product is applicable to industrial automation, electronic instruments, medical instruments and other industries.


product details



Model Name

TM104SDH01-00

Screen Size

10.4 inch

Screen Type

a-Si TFT-LCD, LCM

Pixel Number

800(RGB)×600, SVGA, 96PPI

Arrangement

RGB Vertical Stripe

Active Area(mm)

211.2(W)×158.4(H) mm

Outline(mm)

236(W)×176.9(H) ×5.9(D) mm

Bezel Area(mm)

215.0(W)×162.0(H) mm

Surface

Clear

Brightness

400 cd/m² (Typ.)

Contrast Ratio

400:1 (Typ.) (TM)

Viewing Angle

70/70/60/70 (Typ.)(CR≥10)

Response Time

10/15 (Typ.)(Tr+Td)

Good View at

12 o'clock

Work Mode

TN, Normally White, Transmissive

Color Depth

262K 50% NTSC

Backlight

6S6P WLED , 30K hours , Without Driver

Net Weight

288g (Typ.)

Used for

Industrial Use ,medical

operating frequency

60Hz

Touchscreen

without

Signal Type

LVDS (1 ch, 6-bit) , 20 pins Connector

Voltage Supply

3.3V (Typ.)

Max. Ratings

Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C



features



The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts

have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!

 20 Pin Tm104sdh01 TFT LCD Monitor 10.4 Inch Lvds Display Panel Svga 0



faq



1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.



2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.



3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.



4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.



5.Q:How about the warranty?
A: We supply one year warranty.



6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.



7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
