Boe Ba104s01-300 10.4" Lvds Touch Screen Display Panel 800x600 Led Integrated

Boe Ba104s01-300 10.4" Lvds Touch Screen Display Panel 800x600 Led Integrated

Product Details:

Place of Origin: China
Brand Name: BOE
Model Number: Ba104s01-300

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging,conventional packaging
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Size: 10.4 Inch Outline: 236 × 176.9 × 5.9 (H×V×D) (mm)
Pixel: 800(RGB)×600 (SVGA) 96PPI Active Area: 211.2 × 158.4 (H×V)(mm)
Bezel Area: 215.0 × 162.0 (H×V)(mm) Luminance: 350 Cd/m² (Typ.)
Contrast Ratio: 800:1 (Typ.) (TM) Backlight Type: WLED
High Light:

Led Integrated lvds touch screen

,

10.4" Lvds Lcd Panel

,

lvds display panel Ba104s01

Product Description

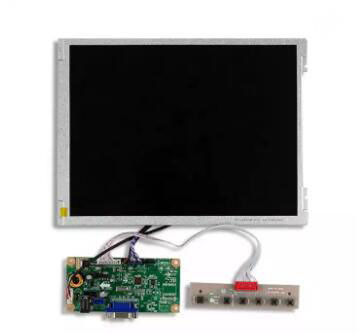

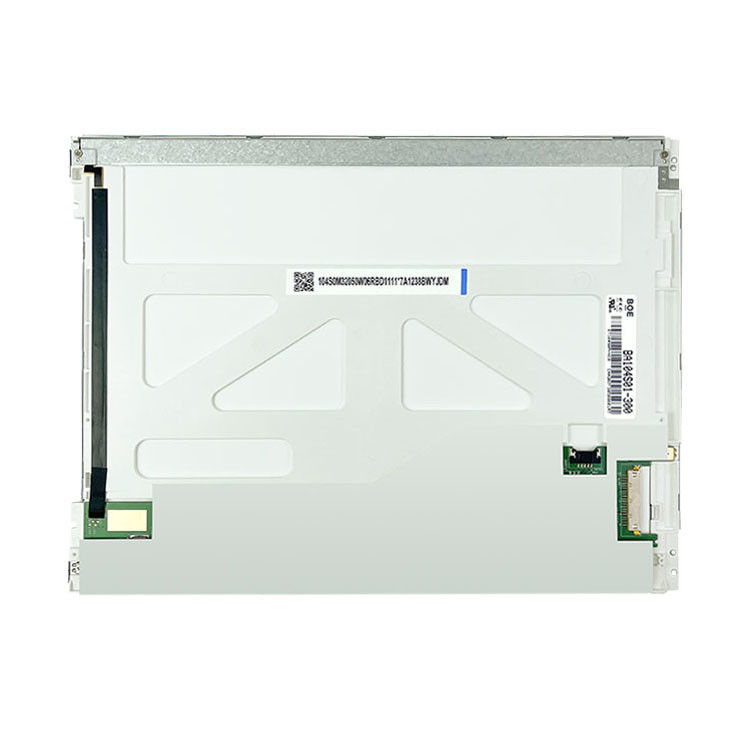

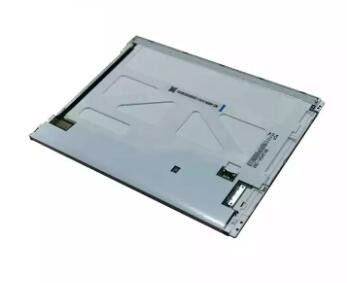

Boe Ba104s01-300 10.4" Tft Lcd 800x600 Lvds Lcd Panel Led Integrated Ba104s01



The BA104S01-300 is a 10.4-inch a-Si TFT-LCD LCD module launched by BOE . It is equipped with a WLED backlight, including a LED driver backlight drive, and no touch. This product operating temperature is-20-70 C, storage temperature is-30-80 C, 6 / 8 bit gray scale optional, display resolution is 800 (RGB) 600 (SVGA), width ratio of 4:3 (width: high), pixels using RGB vertical strip arrangement. Its display area is 211.2 (wide) 158.4 (height) mm, 236 (wide) 176.9 (height) 5.9 (thick) mm, 215.0 (wide) 162.0 (height) mm, Clear, 300g (Typ.). The BA104S01-300 has an LVDS (1 ch, 6 / 8-bit) signal interface, with a total of 20 pins, a terminal connection, and a drive screen voltage of 3.3V (Typ.). It has a typical vertical refresh rate of Fv of 60Hz. The product is applicable to industrial automation, electronic instruments, medical instruments and other industries.


product details



Model Name

BA104S01-300

Screen Size

10.4 inch

Screen Type

a-Si TFT-LCD, LCM

Pixel Number

800(RGB)×600 , SVGA

Arrangement

RGB Vertical Stripe

Active Area(mm)

211.2(W)×158.4(H) mm

Outline(mm)

236(W)×176.9(H) ×5.9(D) mm

Bezel Area(mm)

215.0(W)×162.0(H) mm

Surface

Clear

Brightness

350 nits

Contrast Ratio

800:1 (Typ.) (TM)

Viewing Angle

80/80/65/75 (Typ.)(CR≥10)  Left/Right/Up/ Down

Response

30 (Typ.)(Tr+Td)

Good View at

12 o'clock

Work Mode

TN, Normally White, Transmissive

Color Depth

262K/16.7M   55% (CIE1931)

Backlight

6S4P WLED , 30K hours , With LED Driver

Net Weight

300g (Typ.)

Used for

Industrial Use ,medical

operating frequency

60Hz

Touchscreen

without

Signal Type

LVDS (1 ch, 6/8-bit) , 20 pins , Connector

Voltage Supply

3.3V (Typ.)

Max. Ratings

Storage Temperature: -30 ~ 80 °C  Operating Temp.: -20 ~ 70 °C



features



The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts

have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!

 Boe Ba104s01-300 10.4" Lvds Touch Screen Display Panel 800x600 Led Integrated 0Boe Ba104s01-300 10.4" Lvds Touch Screen Display Panel 800x600 Led Integrated 1



faq



1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.



2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.



3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.



4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.



5.Q:How about the warranty?
A: We supply one year warranty.



6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.



7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
