G104age-L02 10.4 Inch LCD DisplayG104sn02 V0 C0a411-01d F0a411-01d F104a02-6t1
Product Details:
Place of Origin: | China |
Brand Name: | Innolux |
Model Number: | G104AGE-L02 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging,conventional packaging |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Size: | 10.4 Inch | Type: | A-Si TFT-LCD, LCM |
---|---|---|---|
Pixel: | 800(RGB)×600 [WVGA] 91PPI | Active Area: | 211.2(H)×158.4(V) Mm |
Outline Dim.: | 243(H)×184(V) Mm | Bezel Area: | 214.8(H)×162.7(V) Mm |
Luminance: | 400 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (TM) |
High Light: | G104age-L02 10.4 inch lcd monitor,10.4 inch lcd display C0a411-01d,10.4 inch lcd G104sn02 V0 |
Product Description

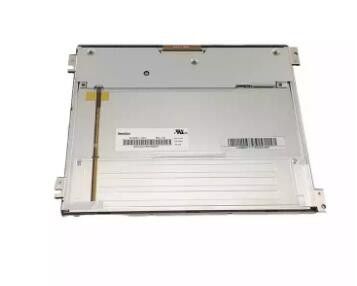

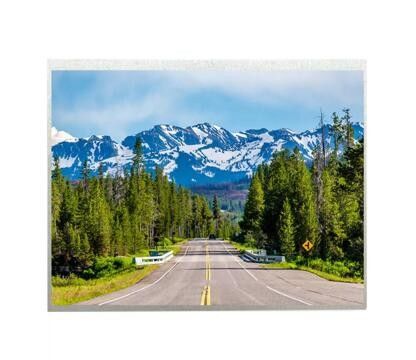

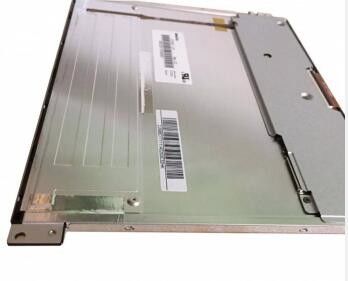

G104age-L02 10.4 Inch Lcd Display Module Lcd Panel Screen G104sn02 V0 C0a411-01d F0a411-01d F104a02-6t1
The G104AGE-L02 is a 10.4-inch a-Si TFT-LCD LCD module product launched by Qunchuang (Innolux), which is equipped with a WLED backlight, including a LED driver backlight drive, and no touch. This product operating temperature is-30 ~ 85 C, storage temperature is-30 ~ 85 C, vibration resistance is 1.5G (14.7 m/s²), wide temperature, 180 degrees flip display, 6 / 8 bit gray scale optional, display resolution of 800 (RGB) 600 (SVGA), aspect ratio of 4:3 (width: high), pixels in RGB vertical strip arrangement. Its display area size is 211.2 (wide) 158.4 (height) mm, appearance size is 243 (wide) 184 (height) mm, visual size is 214.8 (wide) 162.7 (height) mm, surface treatment is mist surface, Hard coating (3H), product net weight 505 / 540g (Typ./Max.). The G104AGE-L02 has a LVDS (1 ch, 6 / 8-bit) signal interface, with a total of 20 pins, a terminal connection, and a drive screen voltage of 3.3V (Typ.).This product is suitable for industrial automation, electronic instrumentation, medical instruments.
product details
Screen Size | 10.4 inch |
Screen Type | LCM , a-Si TFT-LCD |
Pixel Format |
800(RGB)×600 [SVGA] 96PPI |
Configuration | RGB Vertical Stripe |
Active Area
|
211.2(H)×158.4(V) mm |
Outline Size |
243(H)×184(V) mm |
Bezel Area
|
214.8(H)×162.7(V) mm |
Brightness | 400 (Typ.)(cd/m²) |
Contrast Ratio | 700:1 (Typ.) (TM) |
Treatment
|
Antiglare, Hard coating (3H) |
Response Time | 5/11 (Typ.)(Tr/Td) |
Viewing Angle |
80/80/70/70 (Typ.)(CR≥10) |
Operating Mode |
TN, Normally White, Transmissive |
Support Color
|
262K/16.2M 53% NTSC |
Lamp Type | WLED , 50K hours , With LED Driver |
Panel Weight | 505/540g (Typ./Max.) |
Frame Rate | 60Hz |
Touch Panel | Without |
Signal Interface |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
Input Voltage |
3.3V (Typ.) |
Environment |
Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |
features
The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!
faq
1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.
2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.
3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.
4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.
5.Q:How about the warranty?
A: We supply one year warranty.
6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.
7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
