Product Details:

Place of Origin: China
Brand Name: Innolux
Model Number: G104AGE-L02

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging,conventional packaging
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Size: 10.4 Inch Type: A-Si TFT-LCD, LCM
Pixel: 800(RGB)×600 Outline Dim.: 243(H)×184(V) Mm
Active Area: 211.2(H)×158.4(V) Mm Bezel Area: 214.8(H)×162.7(V) Mm
Luminance: 400 Cd/m² (Typ.) Contrast Ratio: 700:1 (Typ.) (TM)
High Light:

800x600 panel lvds

,

Lvds Panel G104age-L02

,

10.4 Inch lvds touch screen

Product Description

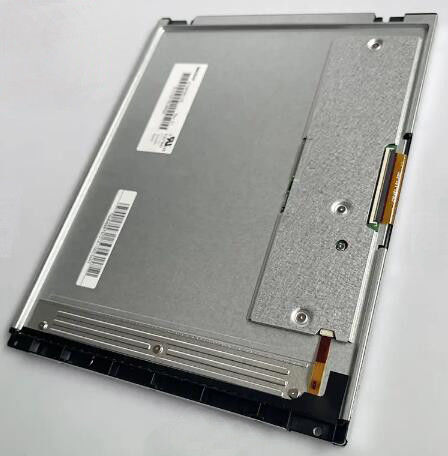

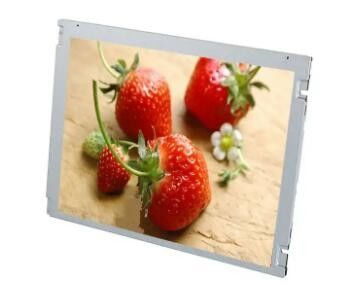

10.4 Inch 800x600 Lvds Panel Industrial Lcd Display G104age-L02 Touch Screen Innolux Tft Lcd



The G104AGE-L02 is a 10.4-inch a-Si TFT-LCD LCD module product launched by Qunchuang (Innolux), which is equipped with a WLED backlight, including a LED driver backlight drive, and no touch. This product operating temperature is-30 ~ 85 C, storage temperature is-30 ~ 85 C, vibration resistance is 1.5G (14.7 m/s²), wide temperature, 180 degrees flip display, 6 / 8 bit gray scale optional, display resolution of 800 (RGB) 600 (SVGA), aspect ratio of 4:3 (width: high), pixels in RGB vertical strip arrangement. Its display area size is 211.2 (wide) 158.4 (height) mm, appearance size is 243 (wide) 184 (height) mm, visual size is 214.8 (wide) 162.7 (height) mm, surface treatment is mist surface, Hard coating (3H), product net weight 505 / 540g (Typ./Max.). The G104AGE-L02 has a LVDS (1 ch, 6 / 8-bit) signal interface, with a total of 20 pins, a terminal connection, and a drive screen voltage of 3.3V (Typ.).This product is suitable for industrial automation, electronic instrumentation, medical instruments.


product details



Screen Size 10.4 inch
Screen Type LCM , a-Si TFT-LCD
Pixel Format

800(RGB)×600 [SVGA] 96PPI

Configuration RGB Vertical Stripe
Active Area

211.2(H)×158.4(V) mm

Outline Size

243(H)×184(V) mm

Bezel Area
214.8(H)×162.7(V) mm
Brightness 400 (Typ.)(cd/m²)
Contrast Ratio 700:1 (Typ.) (TM)
Treatment

Antiglare, Hard coating (3H)

Response Time 5/11 (Typ.)(Tr/Td)
Viewing Angle

80/80/70/70 (Typ.)(CR≥10)

Operating Mode

TN, Normally White, Transmissive

Support Color

262K/16.2M 53% NTSC

Lamp Type WLED , 50K hours , With LED Driver
Panel Weight 505/540g (Typ./Max.)
Frame Rate 60Hz
Touch Panel Without
Signal Interface

LVDS (1 ch, 6/8-bit) , 20 pins Connector

Input Voltage

3.3V (Typ.)

Environment

Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C​

features



The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!



10.4 Inch 800x600 Panel Lvds Touch Screen G104age-L02 0



faq



1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.



2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.



3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.



4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.



5.Q:How about the warranty?
A: We supply one year warranty.



6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.



7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
