Innolux LCD 5 Inch 800x480 HDMI Screen RGB Display Touch Panel

Innolux LCD 5 Inch 800x480 HDMI Screen RGB Display Touch Panel

  • Highlight

    Innolux 5 inch 800x480

    ,

    LCD 5 inch 800x480 hdmi

    ,

    800x480 screen Rgb

  • Size
    5.0 Inch
  • Type
    LCM, A-Si TFT-LCD
  • Pixel
    800(RGB)×480 (WVGA) 188PPI
  • Active Area(mm)
    108 × 64.8 (H×V)
  • Outline(mm)
    120.7 × 76.3 × 3.3 (H×V×D)
  • Bezel Area(mm)
    110.6 × 67.6 (H×V)
  • Luminance
    350 Cd/m² (Typ.)
  • Contrast Ratio
    500 : 1 (Typ.) (TM)
  • Place of Origin
    China
  • Brand Name
    Chimei Innolux
  • Model Number
    EJ050NA-01G
  • Minimum Order Quantity
    1 pcs
  • Price
    Negotiable
  • Packaging Details
    Original packaging,conventional packaging
  • Delivery Time
    7 Days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    100000 Unit/Units per Month

Innolux LCD 5 Inch 800x480 HDMI Screen RGB Display Touch Panel

Innolux 5 Inch 800x480 Tft Lcd Screen Rgb Display Ej050na-01g Touch Panel

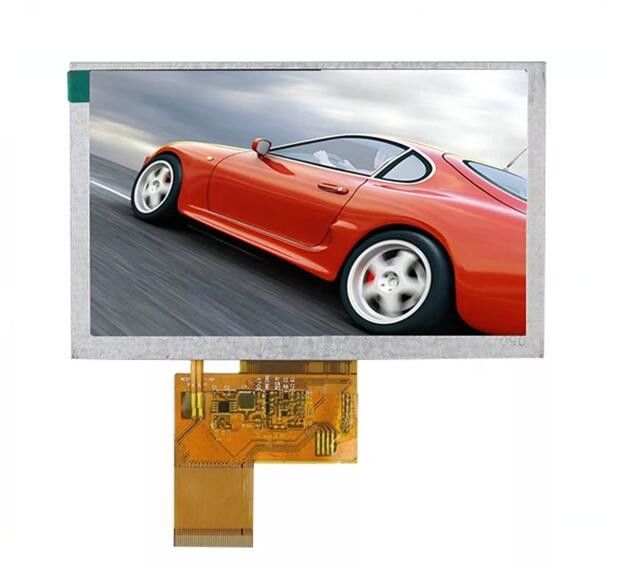

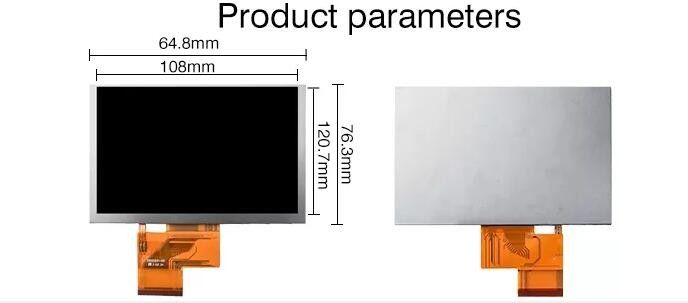

The EJ050NA-01G is a 5.0-inch LCD module product using a-Si TFT-LCD technology, which is equipped with a WLED backlight, no backlight drive, and no touch. Top / bottom, left / right flip is shown. It operates at a temperature of-20-70 C with a storage temperature of-30 to 80 C. The EJ050NA-01G displays a resolution of 800 (RGB)×480 (WVGA), an aspect ratio of 15:9 (width: height), and pixels in RGB vertical bars. Its display area size is 108×64.8 (width and height) mm, visual size is 110.6×67.6 (width and height) mm, appearance size is 120.7 (wide)× 76.3 (height) ×3.3 (thick) mm, surface treatment is fog surface, product net weight 58.5g (Typ.). The EJ050NA-01G has a Parallel RGB (1 ch, 8-bit) signal interface of 50 pins, an FPC connection, and a drive voltage of 3.3/10.4/16.0/-6.0V (Typ.) (DVDD / AVDD / VGH / VGL).This model is suitable for electronic instrumentation,Handheld terminal, on-board display, video phone, MP3, PMP.



product details



Module number EJ050NA-01G
Resolution 800 × 3(RGB) × 480
Dot pitch 0.045(W) ×0.135(H) mm
Active Area 108.0(W) × 64.8(H) mm
View angle R/L/U/D 70/70/50/70(Deg)
Pixel Arrangement RGB-stripe
Surface Treatment Plant
Electrical Interface Parallel RGB
Brightness 350(cd/m2)
Contrast ratio 500:1
Outline dimension 120.7(W) × 76.3(H) × 3.1(D) mm
Backlight LED
Response time 25(ms)
Display mode TN, Normally White, Transmissive
Operate temperature -20-70(°C)
Storage temperature -30-80(°C)
Display Colors 16.7M
Power Supply Voltage 3.3v(Typ.)
Backlight lifetime 20k hrs(Min.)
Power consumption 1.504W(Typ.)
Package original package;
100pcs/carton;
Carton size: 530x355x255 mm




Innolux LCD 5 Inch 800x480 HDMI Screen RGB Display Touch Panel 0

Innolux LCD 5 Inch 800x480 HDMI Screen RGB Display Touch Panel 1





features



    This model is suitable for electronic instrumentation,Handheld terminal, on-board display, video phone, MP3, PMP.

    The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!



faq


1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.



2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.



3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.



4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.



5.Q:How about the warranty?
A: We supply one year warranty.



6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.



7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
