Ej050na-01g Innolux LCD Screen 350 Nit 800*480 5 Inch LCD Panel
|Place of Origin:||China|
|Brand Name:||Chimei Innolux|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 pcs|
|Packaging Details:||Original packaging,conventional packaging|
|Delivery Time:||7 Days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||100000 Unit/Units per Month|
|Pixel:||800(RGB)×480||Outline(mm):||120.7 × 76.3 × 3.3 (H×V×D)|
|Active Area(mm):||108 × 64.8 (H×V)||Bezel Area(mm):||110.6 × 67.6 (H×V)|
|Luminance:||350 Cd/m² (Typ.)||Contrast Ratio:||500 : 1 (Typ.) (TM)|
Ej050na-01g innolux LCD Screen,
350 Nit innolux lcd panel,
800*480 5 inch LCD panel

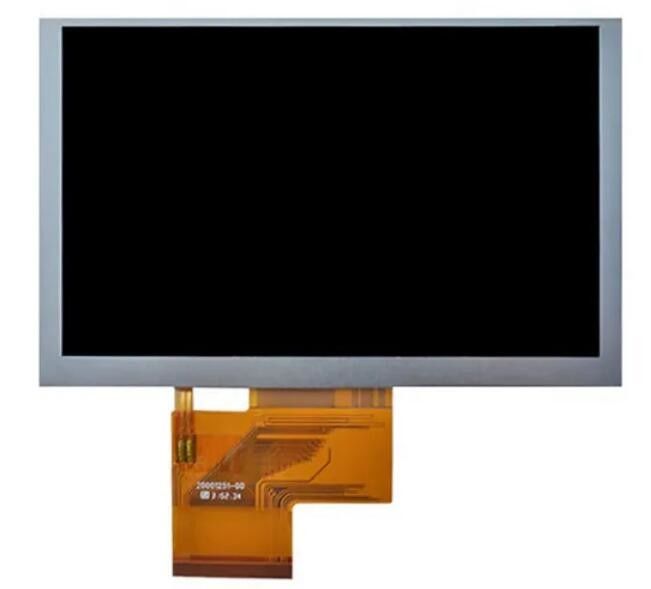

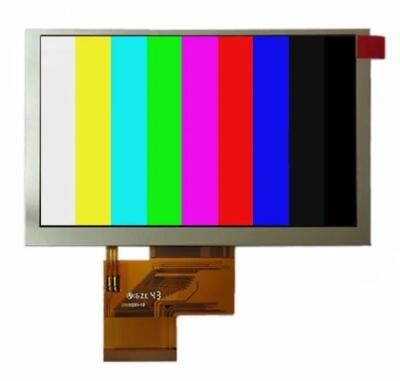

Innolux LCD Screen Polcd EJ050NA-01G 5 inch 800*480 resolution 350 nit lcd panel
The EJ050NA-01G is a 5.0-inch LCD module product using a-Si TFT-LCD technology, which is equipped with a WLED backlight, no backlight drive, and no touch. Top / bottom, left / right flip is shown. It operates at a temperature of-20-70 C with a storage temperature of-30 to 80 C. The EJ050NA-01G displays a resolution of 800 (RGB)×480 (WVGA), an aspect ratio of 15:9 (width: height), and pixels in RGB vertical bars. Its display area size is 108×64.8 (width and height) mm, visual size is 110.6×67.6 (width and height) mm, appearance size is 120.7 (wide)× 76.3 (height) ×3.3 (thick) mm, surface treatment is fog surface, product net weight 58.5g (Typ.). The EJ050NA-01G has a Parallel RGB (1 ch, 8-bit) signal interface of 50 pins, an FPC connection, and a drive voltage of 3.3/10.4/16.0/-6.0V (Typ.) (DVDD / AVDD / VGH / VGL).This model is suitable for electronic instrumentation,Handheld terminal, on-board display, video phone, MP3, PMP.
This model is suitable for electronic instrumentation,Handheld terminal, on-board display, video phone, MP3, PMP.
The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!
1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.
2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.
3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.
4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.
5.Q:How about the warranty?
A: We supply one year warranty.
6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.
7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
