7 Inch 800*480 Long FPC TFT LCD Color Display Module TTL Interface

7 Inch 800*480 Long FPC TFT LCD Color Display Module TTL Interface

  • Highlight

    FPC LCD Color Display Module

    ,

    TTL Interface LCD Color Display Module

    ,

    Vertical Stripe TFT LCD Color Display

  • Screen Size
    7.0 Inch
  • Screen Type
    LCM, A-Si TFT-LCD
  • Pixel Number
    800(RGB)×480 (WVGA) 134PPI
  • Arrangement
    RGB Vertical Stripe
  • Active Area(mm)
    154.08 × 85.92 (H×V)
  • Outline(mm)
    164.82 × 99.8 × 5.5 (H×V×D)
  • Bezel Area(mm)
    156.7 × 89.1 (H×V)
  • Luminance
    250 Cd/m² (Typ.)
  • Place of Origin
    China
  • Brand Name
    RISING-SUN
  • Model Number
    LC070GQIJ50-A0
  • Minimum Order Quantity
    1 pcs
  • Price
    Negotiable
  • Packaging Details
    Original packaging,conventional packaging
  • Delivery Time
    7 Days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    100000 Unit/Units per Month

7 Inch 800*480 Long FPC TFT LCD Color Display Module TTL Interface

7 Inch 800*480 Long FPC TFT LCD Color Display Module TTL Interface

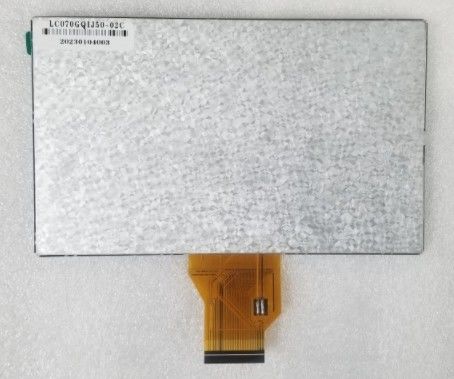

7 Inch 800*480 Ttl Interface Lc070gqij50-A0 Long Fpc Tft Lcd Color Display Module



LC070GQIJ50-A0 is a 7.0-inch LCD module product produced by Rising Star using a-Si TFT-LCD technology. It has a resolution of 800 (RGB) x 480 (WVGA), an aspect ratio of 16:9 (width:height), and pixels arranged in vertical RGB stripes. The backlight adopts 3S9P WLED light-emitting side-entry light source, the service life of the light source is 20K hours, no backlight driver is required. LC070GQIJ50-A0 model is recommended for digital photo frame, portable DVD, video doorbell and video phone.


product details



Model LC070GQIJ50-A0
Panel Size 7 Inch
Resolution 800 x3(RGB) x 480
Pixel Pitch 0.1926*0.1790mm(H*V)
Active area 154.08*85.92 (mm)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D)
Pixel Configuration R.G.B. Vertical Stripe
Signal Interface TTL
Brightness 250 cd/m2
Contrast Ratio 500:1
Outline Dimension 164.80*99.8*5.5
Weight 150g
Display Mode WLED
DRIVER IC EK9713+EK73002
Response Time

10/15(Typ.)(Tr/Td)

Operating Temperature -20~70
Storage Temperature

-30~80℃







features



The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!

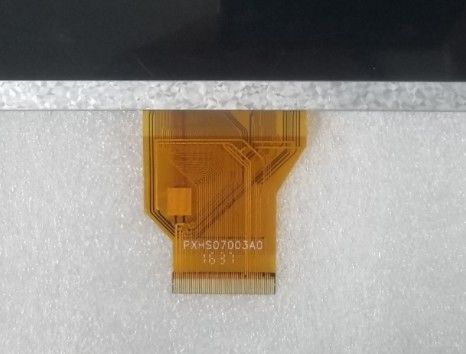

7 Inch 800*480 Long FPC TFT LCD Color Display Module TTL Interface 0

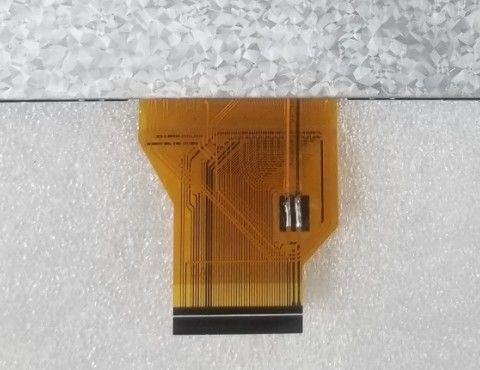

7 Inch 800*480 Long FPC TFT LCD Color Display Module TTL Interface 1



faq



1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.



2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.



3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.



4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.



5.Q:How about the warranty?
A: We supply one year warranty.



6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.



7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
