12.1 Inch Tft Lcd Display Module Lvds Interface For Medical Devices Rising-Sun

12.1 Inch Tft Lcd Display Module Lvds Interface For Medical Devices Rising-Sun

  • Highlight

    LVDS Interface TFT LCD Display Module

    ,

    Medical Devices TFT LCD Display Module

    ,

    LVDS Interface TFT LCD Display Arduino

  • Size
    12.1 Inch Tft Lcd Display
  • Type
    A-Si TFT-LCD, LCM
  • Pixel Format
    1024(RGB)×768
  • Outline
    260.5 (H) X 204 (V) X 8 .51 (D) Mm
  • Effective Area
    245.76 (H) X 184.32 (V) Mm
  • Pixel Pitch
    0.08 X 0.08 Mm
  • Interface
    LVDS
  • Contrast Ratio
    1000:1 (Typ.) (TM)
  • Place of Origin
    China
  • Brand Name
    RISING-SUN
  • Model Number
    LC121GQXL20-A0
  • Minimum Order Quantity
    1 pcs
  • Price
    Negotiable
  • Packaging Details
    Original packaging,conventional packaging
  • Delivery Time
    7 Days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    100000 Unit/Units per Month

12.1 Inch Tft Lcd Display Module Lvds Interface For Medical Devices Rising-Sun

12.1 Inch TFT LCD Display Module LVDS Interface For Medical Devices 12.1 Inch Tft Lcd Display



12.1 Inch 1024*768 Lvds Interface Lc121gqxl20-A0 Tft Lcd Display Medical Devices Industrial Equipment



12.1 Inch Tft Lcd Display LC121GQXL20-A0 is a RISING-SUN LCD module, a transmissive color active matrix liquid crystal display module (LCM), which uses an amorphous silicon transistor (TFT) as a switching device.Amorphous silicon thin-film transistor (TFT) is used as the switching device. The panel has a 12.1inch diagonally measured active display area with a resolution of 1024 x 768. The product is composed of a TFT LCD panel, an amorphous thin-film transistor (TFT), and an active display area.The product consists of a TFT LCD panel, polarizer, driver IC, FPC, and PCBA.Often used in medical devices and industrial equipment, etc.


12.1 Inch Tft Lcd Display product details



Model Name LC121GQXL20-A0
Screen Size 12.1 Inch Tft Lcd Display
Screen Type LCM, a-Si TFT-LCD
Pixel Number 1024(RGB) x 768 (XGA)
Arrangement RGB Vertical Stripe
Effective area (HxV ) 245.76 (H) x 184.32 (V) mm
Outline(mm) 260.5 (H) x 204 (V) x 8 .51 (D) mm
Color alignment RGB stripe
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 85/85/85/85(CR≥10) Left / Right / Up / Down
Number of colors 256K/16.7M
Backlight WLED , 30K hours , With LED Driver
Response time ≤35 ms
Used for Industrial Application
operating frequency 60Hz
Touchscreen without
Voltage Supply 3.3V (Typ.)
Max. Ratings

Storage Temp.: -30 ~ 80°C  Operating Temp.: -30 ~ 80 °C





 12.1 Inch Tft Lcd Display features



This product is suitable for on-board display, industrial automation, electronic instruments, medical instruments.

The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!

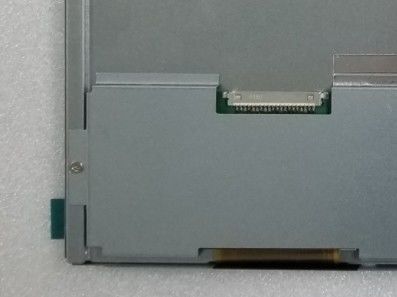

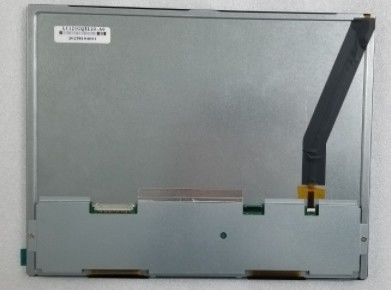

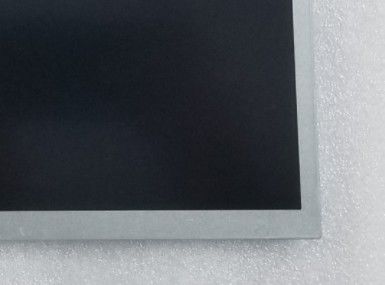

12.1 Inch Tft Lcd Display Module Lvds Interface For Medical Devices Rising-Sun 012.1 Inch Tft Lcd Display Module Lvds Interface For Medical Devices Rising-Sun 1





faq



1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.



2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.



3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.



4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.



5.Q:How about the warranty?
A: We supply one year warranty.



6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.



7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
