240*64 Graphic Dot Matrix LCD Module Monochrome Screen Parallel 5v/3.3v Control IC T6963

240*64 Graphic Dot Matrix LCD Module Monochrome Screen Parallel 5v/3.3v Control IC T6963

  • Highlight

    240*64 Graphic Dot Matrix LCD Module

    ,

    Monochrome Dot Matrix LCD Module

  • Operating Temperature
    -20°C~70°C
  • Backlighting
    Write
  • Display Type
    Graphic LCD
  • Overall Dimensions
    180.0mm X 65.0mm X 13mm
  • Backlight Colour
    Bluel/Yellow Green / White / Other On Request
  • LCD Type
    Avaible In Reflective / Transflective / Transmissive
  • Interface
    Parallel Port
  • Viewpoint
    6 O’clock
  • Place of Origin
    SHEN ZHEN
  • Brand Name
    RISING-SUN
  • Model Number
    LCX24064A
  • Minimum Order Quantity
    1 pcs
  • Price
    Negotiable
  • Packaging Details
    Original packaging,conventional packaging
  • Delivery Time
    3-5 weeks
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    100000 Unit/Units per Month

240*64 Graphic Dot Matrix LCD Module Monochrome Screen Parallel 5v/3.3v Control IC T6963

Product Description:

Our Graphic LCD Display Module is a perfect choice for industrial applications. It is a monochrome dot matrix LCD display that provides a bright, crisp and clear image which is easily visible even in direct sunlight. The display type is a graphic LCD and the backlight colour is available in blue/yellow green/white or other on request. The display resolution is 240*64 and the overall dimensions are 180.0mm X 65.0mm X 13mm. The operating temperature range is -20°C to 70°C, making it suitable for use in various environments. Our Graphic LCD Display Module is perfect for handheld LCD displays, making it the perfect choice for any industrial application.



Features:

  • Product Name: Graphic LCD Display Module
  • Operating Temperature: -20°C~70°C
  • Storgae Temperature: -30°C~80°C
  • Interface: Parallel Port
  • LCD type : Avaible In Reflective / Transflective / Transmissive


Technical Parameters:

Parameters Values
Overall Dimensions 180.0mm X 65.0mm X 13mm
Storgae Temperature -30°C~80°C
Viewing Area 132.0mm X 39.0mm
Backlighting White
Display Resolution 240*64
Viewpoint 6 O’clock
Power Supply Voltage 5V
Backlight colour Bluel/Yellow Green / White / Other On Request
Interface Parallel Port
LCD type Avaible In Reflective / Transflective / Transmissive
Display type  Monochrome dot matrix LCD, 240*64dot matrix LCD


Applications:

RISING-SUN's LCX24064A graphic LCD display module is a 160*128 STN LCD with a display resolution of 240*64 pixels. It has a viewing area of 132.0mm X 39.0mm and is produced in SHEN ZHEN. The module includes various backlight color options such as Blue/Yellow Green/White, with other color options available on request. Moreover, it is driven by RA6963A/T6963C or equivalent driver ICs providing a clear and vivid display. This LCX24064A display module is an ideal choice for applications such as game consoles, industrial control systems, medical devices, etc.

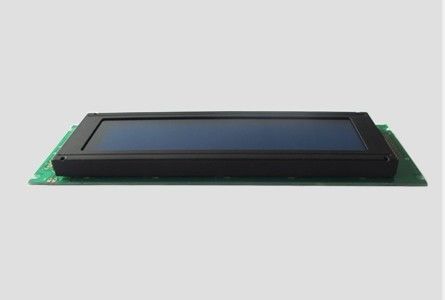

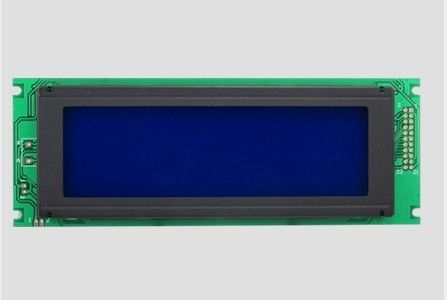

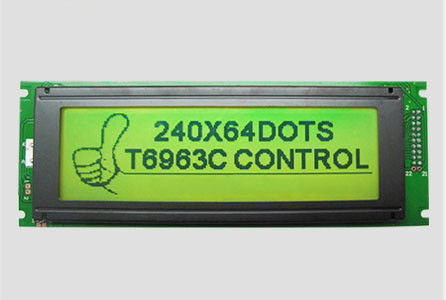

240*64 Graphic Dot Matrix LCD Module Monochrome Screen Parallel 5v/3.3v Control IC T6963 0240*64 Graphic Dot Matrix LCD Module Monochrome Screen Parallel 5v/3.3v Control IC T6963 1240*64 Graphic Dot Matrix LCD Module Monochrome Screen Parallel 5v/3.3v Control IC T6963 2240*64 Graphic Dot Matrix LCD Module Monochrome Screen Parallel 5v/3.3v Control IC T6963 3



Customization:

RISING-SUN Graphic LCD Display Module LCX24064A

This Graphic LCD Display Module LCX24064A from RISING-SUN is designed for outdoor applications and comes with a wide operating temperature range of -20°C to 70°C. It has a 6 O’clock viewing angle and a display resolution of 240*64. The driver IC is either RA6963A/T6963C or equivalent. The viewing area is 132.0mm X 39.0mm and it is built using STN LCD and COG structure.



Support and Services:

Graphic LCD Display Module Technical Support and Services

We offer comprehensive technical support and services for our Graphic LCD Display Module. Our technical support team is available to provide answers to your questions and troubleshoot any issues you may have. We also offer services such as firmware updates, module customization and integration, and repair services.

Our technical support team can be reached by email or phone. We are available 24/7 to answer your questions and troubleshoot any issues you may have. In addition, we offer a comprehensive online knowledge base and FAQs to help you quickly find answers to your questions.

We also offer a variety of services to ensure our Graphic LCD Display Module meets your needs. We can customize the module to meet your specific requirements. Our team can also help you integrate the module into your system, as well as provide firmware updates and repair services.

We are committed to providing quality technical support and services for our Graphic LCD Display Module. Our team is available to answer your questions and help you get the most out of your module.



FAQ:

Q1: What is the brand name and model number of the Graphic LCD Display Module?

A1: The brand name is RISING-SUN and the model number is LCX24064A.

Q2: Where is the Graphic LCD Display Module produced?

A2: The Graphic LCD Display Module is produced in Shen Zhen, China.

Q3: What types of display can the Graphic LCD Display Module support?

A3: The Graphic LCD Display Module supports monochrome, tri-color, and bi-color displays.

Q4: What is the maximum resolution of the Graphic LCD Display Module?

A4: The maximum resolution of the Graphic LCD Display Module is 240*64.

Q5: What voltage is required to power the Graphic LCD Display Module?

A5: The Graphic LCD Display Module requires a voltage of 5V to operate.



Product details parameters, please contact our company personnel, specifications shall prevail!
