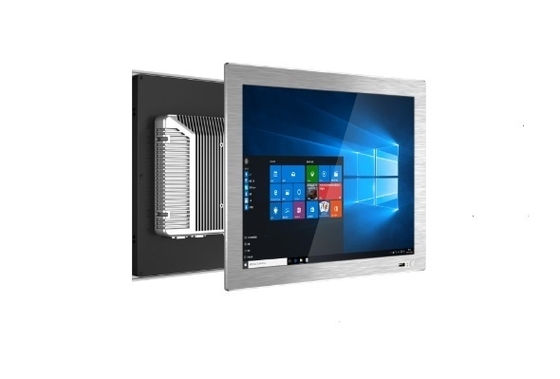

Industrial Control All-In-One Computer 12.1 15 17 19-Inch Resistive Touchscreen External Embedded

Industrial Control All-in-One Computer 12.1 15 17 19-inch Resistive Touchscreen External Embedded

Size

12.1-inch

Screen Ratio 4:3

Resolution 1024x768

Brightness 500 cd/m²

Cutout Dimensions 292.5 x 236.5 mm R6

Overall Dimensions 306.5 x 250.5 x 56 mm

15-inch

Screen Ratio 4:3

Resolution 1024x768

Brightness 350 cd/m²

Cutout Dimensions 353 x 277 mm R5.8

Overall Dimensions 363.5 x 287.5 x 56 mm

17-inch

Screen ratio 4:3

Resolution 1280x1024

Brightness 250 cd/m²

Cutout dimensions 381.6 x 318.6 mm R5.8

Overall dimensions 395.6 x 332.6 x 56 mm

19-inch

Screen ratio 4:3

Resolution 1280x1024

Brightness 250 cd/m²

Cutout dimensions 417.2 x 347.2 mm R5.8
Overall dimensions 431.2 x 361.2 x 56 mm

Configuration parameters

CPU Intel® Celeron® Processor J1900

(2MB cache, up to 2.42GHz) Intel® Core™ i5-4300U (4th Gen i5) (3MB cache, up to 2.90GHz) Intel® Core™ i5-7200U (7th Gen i5) (3MB cache, up to 3.10GHz)

Memory 4GB (upgradable to 8GB/16GB)

Storage 64GB SSD (upgradable to 128GB/256GB/512GB, with an additional 2.5-inch hard drive)

Network Realtek RTL8111F Gigabit Ethernet Adapter

Operating System Windows 7/Windows 10/Linux

Wi-Fi (optional) Supports Wi-Fi/Bluetooth module

4G (optional) Supports 4G/GPS communication module

Interfaces 1 Gigabit Ethernet port / 2 serial ports / 4 USB ports / 1 HDMI port / 1 VGA port

/ 1 LINE OUT port / 1 MIC port

(Ethernet port can be expanded to 2 ports, serial ports can be expanded to 6 ports, USB ports can be expanded to 6 ports. Serial ports are defaulted to RS232, with COM2 and COM3 configurable to RS485)

Speaker Built-in 2W speaker

Power Input Standard 12VDC interface, outer diameter 5.5mm, inner diameter 2.5mm

(Can be paired with a 9-36V wide-voltage module, Phoenix terminal interface)

Power Adapter Standard AC-DC 12V@5A, 60W

LCD and Touch Parameters

Viewing Angle Full viewing angle

Touch Type Resistive touch

Input Method Operated by pressing with a finger (gloves can be worn)

Transmittance ≥78%

Surface Hardness 3H

Environmental Parameters

Operating Temperature 0°C to 50°C

Storage Temperature -10°C to 60°C

Operating Humidity 5% to 95% relative humidity, no condensation

Other Parameters

Heat Dissipation Method Fanless passive heat dissipation

Power-on method Switch-on, supports automatic power-on at startup

Watchdog Supports hardware reset function (256 levels, 0–255 seconds)

Installation method Embedded, wall-mounted, desktop

Packaging contents 1 x complete unit / 1 x 12V 5A power adapter / 1 x national standard power cord / 4 x clips /

Screws 1 pack

Resistive touch industrial control all-in-one computers are widely used in the following fields with extremely high requirements for reliability and adaptability:

1. Industrial automation and control (the most core field)
PLC/SCADA human-machine interface (HMI): This is the most classic application. In production lines, machine tools, and equipment control cabinets, industrial control all-in-one computers are used as human-machine interaction interfaces for setting parameters, starting and stopping equipment, monitoring operating status (such as temperature, pressure, and speed), and displaying alarm information. Operators can reliably operate the system even while wearing gloves.

Factory automation production lines: Installed alongside production lines, these systems enable operators to input production data, record quality inspection results, request materials, and view work instructions.

Testing and measurement equipment: Integrated into various precision testing instruments and measurement devices, these systems are used to control instruments and display data.

2. Smart terminals and retail
POS cash register systems: Especially in environments such as restaurant kitchens, warehouses, and outdoor settings where water and oil contamination are common, resistive touchscreens offer better stability than capacitive touchscreens.

Self-service terminals (kiosks): Such as public information kiosks, self-service ticketing machines, and bank ATMs (commonly seen in earlier models). Although capacitive screens are becoming the mainstream, resistive screens still have a market in outdoor, harsh environments, or scenarios requiring vandalism resistance.

Handheld Data Collectors: Handheld terminals (PDAs) used for warehouse management, logistics and delivery, and retail inventory often operate in outdoor or warehouse environments with high dust levels and are frequently used while wearing gloves, making resistive screens an ideal choice.

3. Medical equipment
Medical environments require frequent disinfection, and doctors may wear gloves. Resistive touchscreens can withstand corrosion from alcohol and disinfectants, ensuring reliable operation. Common applications include:

Bedside monitors

Portable diagnostic devices

Auxiliary control devices in operating rooms

4. Transportation and Logistics
Vehicle-mounted computers: Installed on forklifts, AGVs, trucks, and construction vehicles for vehicle scheduling, navigation, and cargo information management. Vehicles experience significant vibration and temperature fluctuations, making resistive touchscreens a stable choice.

Logistics sorting systems: In sorting centers, operators need to quickly touch and process package information. Resistive touchscreens can adapt to this high-intensity, potentially dirty usage scenario.

5. Outdoor and Harsh Environment Applications
Smart Agriculture: Installed in agricultural machinery and greenhouse control systems, these environments may involve high temperatures, high humidity, and dust.

Energy and Power: Used in substations, distribution rooms, oil fields, mines, and other environments for equipment monitoring and data collection. Explosion-proof and anti-interference capabilities are essential.

Military and Aerospace: These applications demand extremely high reliability and anti-interference capabilities, and resistive touchscreens are a proven technology.

6. Other Professional Fields
Smart Home Control: Central control screens in high-end or commercial buildings, prioritizing stability and longevity.

Laboratory Equipment: Integrated into various analytical instruments and experimental devices.

Summary
In summary, the application areas of resistive touchscreen industrial control all-in-one machines can be summarized as: any scenario where operational reliability and environmental adaptability are prioritized over visual aesthetics and multi-touch functionality.

Its primary applications are in harsh environments (dusty, oily, humid), where glove operation is required, strong electromagnetic interference is present, and accidental touches must be prevented (as a certain amount of pressure is needed to trigger the touch). Despite the emergence of new technologies, resistive touchscreens remain highly resilient and enduring in these “hardcore” industries due to their unmatched stability and adaptability.

For more detailed and accurate information, please contact us to obtain a copy of our specifications.
