10.4 Inch Industrial LCD Screens Monitor G104SN03 V.0 V.1 V1 TS104SAALC01-00 TM104SDH01
Product Details:
| Place of Origin: | China |
| Brand Name: | Tianma |
| Model Number: | TM104SDH01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging,conventional packaging |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Size: | 10.4 Inch | Type: | TFT-LCD |
|---|---|---|---|
| Pixel: | 800(RGB)×600 | Outline: | 236 × 176.9 × 5.9 (H×V×D) (mm) |
| Active Area: | 211.2 × 158.4 (H×V)(mm) | Bezel Area: | 215.0 × 162.0 (H×V)(mm) |
| Luminance: | 400 Cd/m² (Typ.) | Voltage Supply: | 3.3V |
| High Light: | industrial lcd screens G104SN03 V.1,G104SN03 V.0 industrial monitor lcd,lcd industrial monitor TM104SDH01 |
||
Product Description

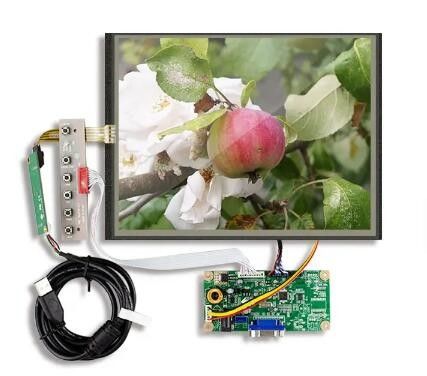

Tianma 10.4 Inch Tft Tm104sdh01 Display Ts104saalc01-00 Lcd Scree Display Module Touch Panel

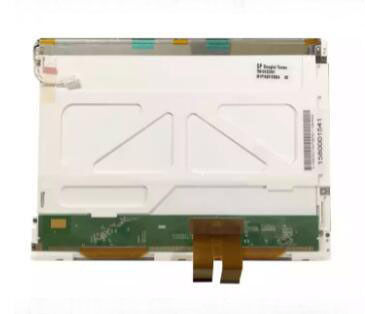

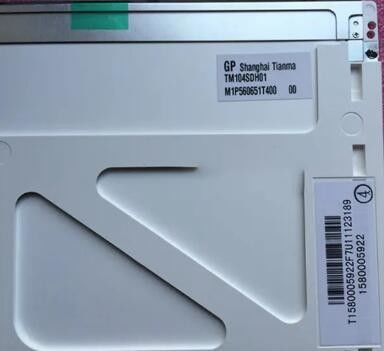

The TM104SDH01-00 is a 10.4-inch a-Si TFT-LCD LCD module from Tianma , which is equipped with a WLED backlight, no backlight drive, and no touch. Operating temperature is-20 ~ 70 C and storage temperature is-30 ~ 80 C. The display resolution is 800 (RGB) 600 (SVGA), the aspect ratio is 4:3 (width: height), and the pixels are arranged in RGB vertical bars. Its display area size is 211.2 (wide) 158.4 (height) mm, 236 (width) 176.9 (height) 5.9 (thickness) mm, 215.0 (width) 162.0 (height) mm, surface treatment is mist, Hard coating (3H), product net weight 288g. The TM104SDH01-00 has an LVDS (1 ch, 6-bit) signal interface, with a total of 20 pins, a terminal connection, and a drive screen voltage of 3.3V (Typ.). It has a typical vertical refresh rate of Fv of 60Hz. This product is applicable to industrial automation, electronic instruments, medical instruments and other industries.
product details
|
Model Name |
TM104SDH01-00 |
|
Screen Size |
10.4 inch |
|
Screen Type |
a-Si TFT-LCD, LCM |
|
Pixel Number |
800(RGB)×600, SVGA, 96PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
211.2(W)×158.4(H) mm |
|
Outline(mm) |
236(W)×176.9(H) ×5.9(D) mm |
|
Bezel Area(mm) |
215.0(W)×162.0(H) mm |
|
Surface |
Clear |
|
Brightness |
400 cd/m² (Typ.) |
|
Contrast Ratio |
400:1 (Typ.) (TM) |
|
Viewing Angle |
70/70/60/70 (Typ.)(CR≥10) |
|
Response Time |
10/15 (Typ.)(Tr+Td) |
|
Good View at |
12 o'clock |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
262K 50% NTSC |
|
Backlight |
6S6P WLED , 30K hours , Without Driver |
|
Net Weight |
288g (Typ.) |
|
Used for |
Industrial Use ,medical |
|
operating frequency |
60Hz |
|
Touchscreen |
without |
|
Signal Type |
LVDS (1 ch, 6-bit) , 20 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
features
The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts
have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!
faq
1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.
2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.
3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.
4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.
5.Q:How about the warranty?
A: We supply one year warranty.
6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.
7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
