Product Details:

Place of Origin: China
Brand Name: Chimei Innolux
Model Number: At056tn52 V.3

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging,conventional packaging
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Size: 5.6 Inch Pixel: 640(RGB)×480
Outline: 126.5 × 100 × 6 (H×V×D) Active Area(mm): 112.896 × 84.672 (H×V)
Bezel Area(mm): 115.70 × 87.47 (H×V) Luminance: 200 Cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) Backlight: WLED
High Light:

LCD display FPC 50 Pins

,

Fpc colour TFT display

,

50Pins Industrial LCD Monitor

Product Description

640*480 Tft 5.6 Inch Fpc 50 Pins Display At056tn52 V.3 Industrial Lcd Monitor

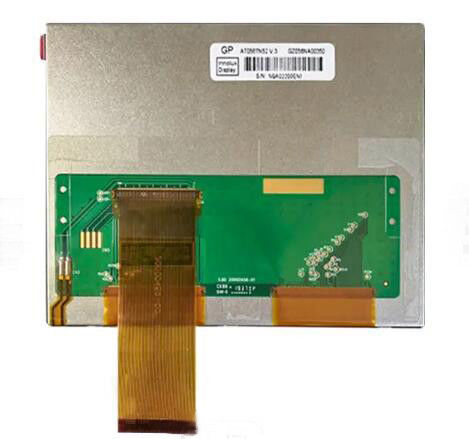

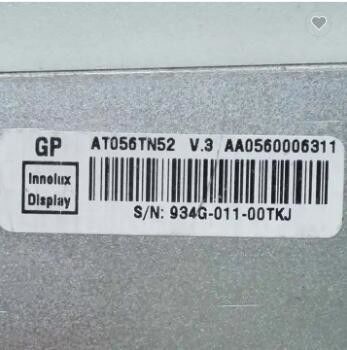

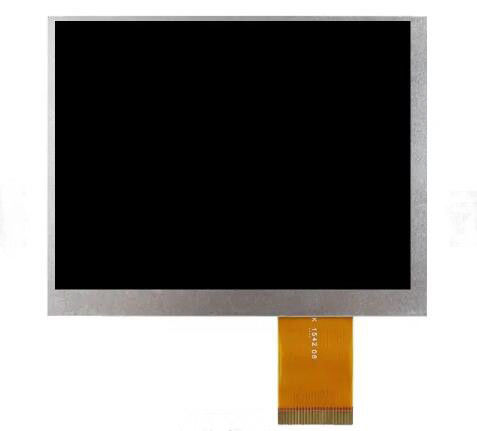

AT056TN52 V.3 is a 5.6-inch LCD module using a-Si TFT-LCD technology from Innolux. It is equipped with WLED backlight, no backlight drive, no touch, display resolution of 640 (RGB) ×480 (VGA), width ratio of 4:3 (width: high), and pixels are arranged in RGB vertical strip. Its display area size is 112.896×84.672 (width and height) mm, the visual size is 115.70×87.47 (width and height) mm, the appearance size is 126.5×100 (width and height) 6 (thick) mm, the surface treatment is fog surface, the product net weight is 127.5g (Typ.). Using a Parallel RGB (1 ch, 8-bit) signal interface, a total of 50 pins, an FPC connection, and a drive screen voltage of 3.3/5.0/15/-10V (Typ.) (VCC / AVDD / VGH / VGL). It operates at temperatures of-20-70 C and has storage temperatures of-30-80 C.



product details



Model Name AT056TN52 V.3
Screen Size 5.6 inch
Screen Type a-Si TFT-LCD, LCM
Pixel Number 640(RGB)×480 , VGA
Arrangement RGB Vertical Stripe
Active Area(mm) 112.896 × 84.672 (H×V)
Outline(mm) 126.5 × 100 × 6 (H×V×D)
Bezel Area(mm) 115.90(W)×87.67(H) mm
Surface Antiglare
Brightness 200 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) Left/Right/Up/ Down
Response 10/15 (Typ.)(Tr/Td) ms
Good View at 6 o'clock
Work Mode TN, Normally White, Transmissive
Color Depth 16.7M
Backlight 3S5P WLED , 20K hours , No Driver
Net Weight 127.5g (Typ.)
Used for Portable DVD Player,Digital Photo Frame
operating frequency 60Hz
Touchscreen without
Interface Type Parallel RGB (1 ch, 8-bit) , FPC 50 pins
Voltage Supply 3.3/5.0/15/-10V (Typ.)(VCC/AVDD/VGH/VGL)
Max. Ratings

Storage Temperature: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

features


This model is recommended for medical instruments, electronic instruments,Handheld terminal,digital picture frames, video doorbell, and video telephones.

The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specification. Efforts and efforts have been made to reduce errors, but the parameters are not fully correct. Please refer to the specifications!



LCD Display FPC 50 Pins Industrial LCD Monitor Colour TFT Display 0

LCD Display FPC 50 Pins Industrial LCD Monitor Colour TFT Display 1



faq


1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.



2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.



3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.



4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.



5.Q:How about the warranty?
A: We supply one year warranty.



6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.



7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
