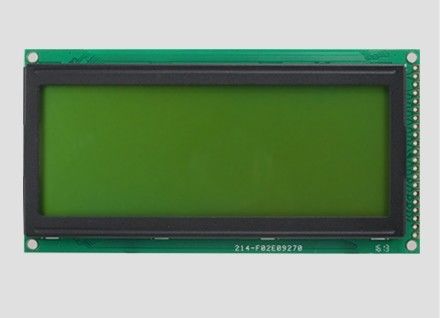

STN FSTN Graphic LCD Display Module 192x64 Reflective / Transflective / Transmissive
Product Details:
| Place of Origin: | SHEN ZHEN |
| Brand Name: | RISING-SUN |
| Model Number: | LCX19264A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging,conventional packaging |
| Delivery Time: | 3-5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Interface: | Parallel Port | Power Supply Voltage: | 5V |
|---|---|---|---|
| Backlight Colour: | Yellow Green / White / Other On Request | Storgae Temperature: | -30°C～80°C |
| Display Type: | Graphic LCD | Viewing Area: | 104.0mm X 39.0mm |
| Display Resolution: | 192*64 STN Character Graphic Dot Matrix | LCD Type: | Avaible In Reflective / Transflective / Transmissive |
| High Light: | Parallel Port STN LCD Display,FSTN Graphic LCD Display Module,Graphic LCD Display Module 192x64 |
||
Product Description
192x64 Stn Negative Transmissive Graphic Lcd With 5v 19264 Fstn Positive Transflective Graphic Cob Lcd With 3.3v
192*64 Character graphic dot matrix Product Description:
Graphic LCD Display Module is a handheld LCD display module with a 192*64 resolution and FSTN LCD technology. It is characterized by a low power consumption, an overall dimension of 120.0mm X 62.0mm X 12.5mm, a 6 O’clock viewing angle, a storage temperature of -30°C～80°C, a driver IC of NT7108, and a parallel port interface. It is suitable for a wide variety of applications, and provides users with a reliable display solution.
192*64 LCD Module Character graphic dot matrix Features:
- Product Name: Graphic LCD Display Module
- LCD type: Avaible In Reflective / Transflective / Transmissive
- Backlight colour: Yellow Green / White / Other On Request
- Interface: Parallel Port
- Overall Dimensions: 120.0mm X 62.0mm X 12.5mm
- Viewing Area: 104.0mm X 39.0mm
- Resolution: 192*64 STN LCD industrial LCD
Technical Parameters:
| Parameter | Description |
|---|---|
| Viewing Area | 104.0mm X 39.0mm |
| Backlight colour | Yellow Green / White / Other On Request |
| Driver IC | NT7108 |
| LCD type | Reflective / Transflective / Transmissive |
| Display Type | Graphic LCD |
| Power Supply Voltage | 5V |
| Storage Temperature | -30°C～80°C |
| Display Resolution | 192*64 |
| Viewpoint | 6 O’clock |
| Overall Dimensions | 120.0mm X 62.0mm X 12.5mm |
| LCD Display | 192*64, Monochrome dot matrix LCD, Monochrome dot matrix LCD module |
Applications:
RISING-SUN LCX19264A Graphic LCD Display Module is a perfect solution for those who need a reliable and efficient display solution. It is designed to be used in a wide range of applications, from industrial automation to medical, automotive, and gaming applications. With its overall dimensions of 120.0mm X 62.0mm X 12.5mm, this display module can easily fit into any small space. It features a 192*64 or 240*128 resolution and an LED or LCD backlight with yellow green, white, or other colors available on request. Additionally, it operates at a 5V power supply voltage and offers a 6 O’clock viewpoint. Moreover, the storage temperature range of this display module is -30°C～80°C. RISING-SUN LCX19264A Graphic LCD Display Module is a great choice for those who need a reliable and efficient display solution in their applications.
Customization:
This Graphic LCD Display Module is featured by STN LCD, Industrial LCD, 192*64 LCD and Graphic LCD Display Module. The Driver IC is NT7108, and backlighting can be Write, Yellow Green / White / Other On Request. The interface is Parallel port and the overall dimensions are 120.0mm X 62.0mm X 12.5mm. Place of Origin is SHENZHEN.
Packing and Shipping:
Graphic LCD Display Module is shipped in a custom-made cardboard box with the following dimensions: length: 15 cm, width: 10 cm and height: 10 cm. The box is designed to protect the module during transport. The module is sealed with foam wrap and secured with bubble wrap. All orders are shipped via a reliable courier services like DHL, FedEx, or UPS.
FAQ:
Q1: What is the display size of RISING-SUN LCX19264A Graphic LCD Display Module?
A1: The display size of RISING-SUN LCX19264A Graphic LCD Display Module is 2.4 inches.
Q2: What is the resolution of RISING-SUN LCX19264A Graphic LCD Display Module?
A2: The resolution of RISING-SUN LCX19264A Graphic LCD Display Module is 192x64.
Q3: What is the operating voltage of RISING-SUN LCX19264A Graphic LCD Display Module?
A3: The operating voltage of RISING-SUN LCX19264A Graphic LCD Display Module is 3.3V.
Q4: What is the interface type of RISING-SUN LCX19264A Graphic LCD Display Module?
A4: The interface type of RISING-SUN LCX19264A Graphic LCD Display Module is 8-bit parallel.
Q5: Where is RISING-SUN LCX19264A Graphic LCD Display Module produced?
A5: RISING-SUN LCX19264A Graphic LCD Display Module is produced in Shenzhen, China.
Please contact our company for a detailed specification of product details.
