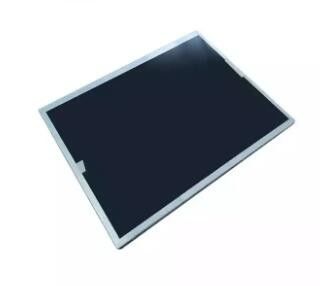

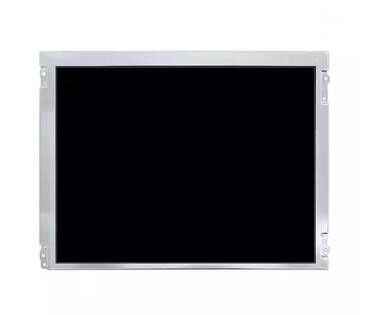

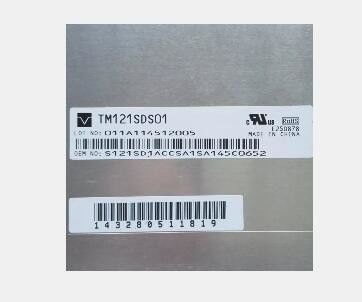

800*600 4:3 12.1 Inch LCD Panel Monitor Tm121sds01

800*600 4:3 12.1 Inch LCD Panel Monitor Tm121sds01

Product Details:

Place of Origin: China
Brand Name: Tianma
Model Number: TM121SDS01

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging,conventional packaging
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Size: 12.1 Inch Product Type: LCM , A-Si TFT-LCD
Pixel Format: 800(RGB)×600 (SVGA) 82PPI Active Area: 246 × 184.5 (H×V)
Outline: 279 × 209 × 9.3 (H×V×D) Bezel Area: 249.05 × 188.3 (H×V)
Luminance: 450 Cd/m² (Typ.) Contrast Ratio: 700:1 (Typ.) (TM)
High Light:

Tm121sds01 Tft Lcd Panel


12.1 inch LCD panel Tm121sds01


12.1 lcd monitor 4:3

Product Description

Tm121sds01 12.1 Inch 800*600 4:3 Display Tft Lcd Panel Industry Tianma Led Backlight


The TM104SDH01-00 is a 10.4-inch a-Si TFT-LCD LCD module from Tianma , which is equipped with a WLED backlight, no backlight drive, and no touch. Operating temperature is-20 ~ 70 C and storage temperature is-30 ~ 80 C. The display resolution is 800 (RGB) 600 (SVGA), the aspect ratio is 4:3 (width: height), and the pixels are arranged in RGB vertical bars. Its display area size is 211.2 (wide) 158.4 (height) mm, 236 (width) 176.9 (height) 5.9 (thickness) mm, 215.0 (width) 162.0 (height) mm, surface treatment is mist, Hard coating (3H), product net weight 288g. The TM104SDH01-00 has an LVDS (1 ch, 6-bit) signal interface, with a total of 20 pins, a terminal connection, and a drive screen voltage of 3.3V (Typ.). It has a typical vertical refresh rate of Fv of 60Hz. This product is applicable to industrial automation, electronic instruments, medical instruments and other industries.

product details


Model Name


Screen Size

12.1 inch

Screen Type


Pixel Number

800(RGB)×600 (SVGA) 82PPI


RGB Vertical Stripe

Active Area(mm)

246 × 184.5 (H×V)


279 × 209 × 9.3 (H×V×D)

Bezel Area(mm)

249.05 × 188.3 (H×V)




450 cd/m² (Typ.)

Contrast Ratio

700:1 (Typ.) (TM)

Viewing Angle

80/80/65/75 (Typ.)(CR≥10)

Response Time

10/25 (Typ.)(Tr/Td) ms

Work Mode

TN, Normally White, Transmissive

Color Depth

262K/16.2M 55% NTSC


10S2P WLED , 50K hours , With LED Driver

Net Weight

540g (Typ.)

Used for

Industrial Use

operating frequency




Signal Type

LVDS (1 ch, 6/8-bit) , Connector 20 pins

Voltage Supply

3.3V (Typ.)

Max. Ratings

Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C




The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts

have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!

 800*600 4:3 12.1 Inch LCD Panel Monitor Tm121sds01 0




1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.


2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.


3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.


4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.


5.Q:How about the warranty?
A: We supply one year warranty.


6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.


7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
