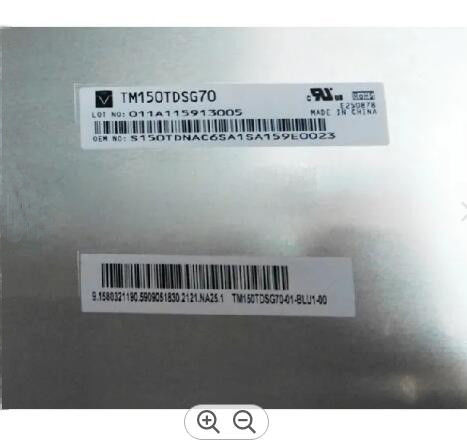

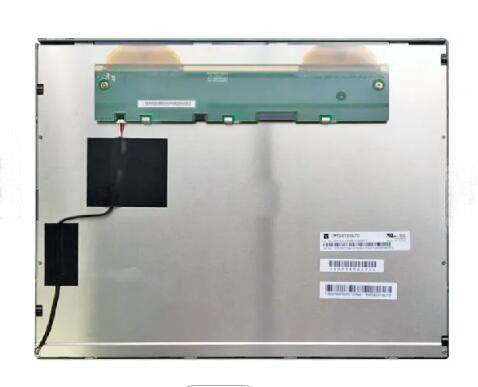

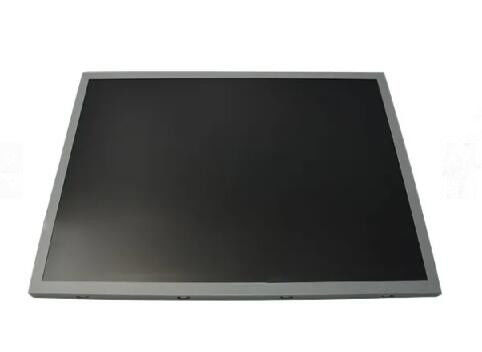

Tianma Lvds Industrial LCD Display Panel 15 Inch Tm150tdsg70 1024*768
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 pcs|
|Packaging Details:||Original packaging,conventional packaging|
|Delivery Time:||7 Days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||100000 Unit/Units per Month|
|Type:||LCM , A-Si TFT-LCD||Luminance:||600 Cd/m² (Typ.)|
|Outline(mm):||326.5 × 253.5 × 12.1 (H×V×D)||Active Area(mm):||304.128 × 228.096 (H×V)|
|Bezel Area(mm):||307.4 × 231.3 (H×V)||Interface:||LVDS|
Lvds Industrial LCD display Panel,
Tianma 15 inch lcd display panel,
Tm150tdsg70 15 inch lcd panel
|Pixel Pitch||0.297 x 0.297 (mm)|
|Active Area||304.128(H)x228.096(V) (mm)|
|View angle||R/L/U/D 80/80/80/80 (Deg)|
|Number of Colors||262K/16.2M|
|Electrical Interface||Digital, LVDS(1ch, 6/8 bit)|
|Outline dimension||325(H)x253.5(V)x 12.0 (T) (mm)|
|LED Life (hrs.)||50K|
|Supply Voltage (V)||3.3V|
|Response time||8 (ms)|
|Operate temperature||-20 ~ 70 °C|
|Operate humidity||5-95 (%RH)|
|Storage humidity||5-95 (%RH)|
The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!
1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.
2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.
3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.
4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.
5.Q:How about the warranty?
A: We supply one year warranty.
6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.
7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
