At070tn94 Raspberry Pi TFT LCD Display Modules HDMI Capacitive Touch Panel Kit

At070tn94 Raspberry Pi TFT LCD Display Modules HDMI Capacitive Touch Panel Kit

Product Details:

Place of Origin: China
Brand Name: OEM
Model Number: AT070TN94

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging,conventional packaging
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Screen: 7.0 Inch Pixel: 800(RGB)×480
Active Area(mm): 154.08 × 85.92 (H×V) Outline(mm): 164.9 × 100 × 6 (H×V×D)
Bezel Area(mm): 156.7 × 89.1 (H×V) Supplier Type: OEM
Accessory: Display+CTP+Driver Board Kit Contrast Ratio: 500:1 (Typ.) (Transmission)
High Light:

At070tn94 TFT LCD display modules

,

7 Inch raspberry pi tft display

,

Capacitive Touch Panel Kit hdmi

Product Description

7 inch AT070TN94 TFT Display Screen Capacitive Touch Panel Kit with HD-MI Driver Board for Raspberry Pi



AT070TN94 is a 7.0-inch LCD module product using a-Si TFT-LCD technology launched by Innolux . It is equipped with WLED backlight, no backlight drive, no touch, upper / bottom, left / right flip display, 6 / 8 gray scale optional, surface fog, display resolution of 800 (RGB) ×480 (WVGA), width ratio of 16:9 (width: high), pixels in RGB vertical strip. Its display area size is 154.08×85.92 (width and height) mm, visual size is 156.7×89.1 (width and height) mm, appearance size is 164.9×100 (width and height)×6 (thick) mm, surface treatment is fog surface, product net weight is 154g (Typ.). The AT070TN94 has a Parallel RGB (1 ch, 6 / 8-bit) signal interface, a total of 50 pins, an FPC connection, and a drive screen voltage of 3.3/10.4/16.0/-7.0V (Typ.) (DVDD / AVDD / VGH / VGL). It has an operating temperature of-30 ~ 85 C, a storage temperature of-30 ~ 85 C, and a vibration resistance of 1.5G (14.7 m / s²). This model is widely used in industrial automation, electronic instrumentation, medical instruments, on-board display, digital photo frame, portable DVD, video doorbell, video phone.



product details



Manufacturer Innolux
Screen Size 7.0 inch
Screen Type

LCM , a-Si TFT-LCD

Pixel Number 800(RGB)×480 (WVGA) 134PPI
Arrangement RGB Vertical Stripe
Active Area(mm) 154.08 × 85.92 (H×V)

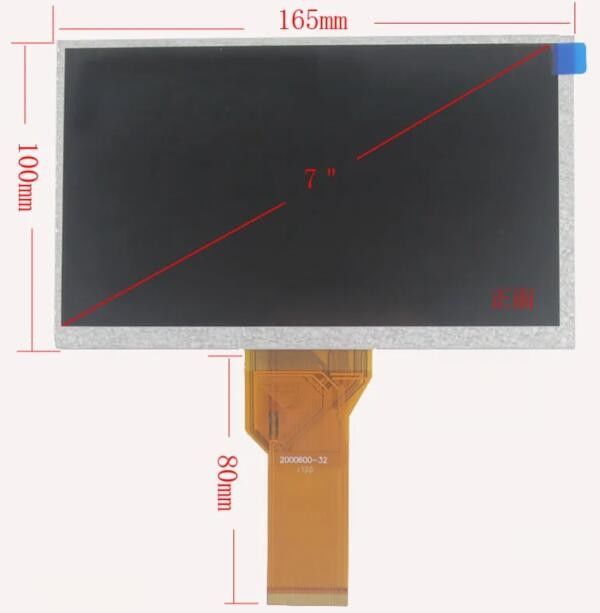

Outline(mm) 164.9 × 100 × 6 (H×V×D)
Bezel Area(mm) 156.7 × 89.1 (H×V)
Treatment Antiglare
Luminance 400 (Typ.)(cd/m²)
Contrast Ratio 500 : 1 (Typ.) (TM)
Work Mode TN, Normally White, Transmissive
Viewing Angle 70/70/50/70 (Typ.)(CR≥10)
Response 25 (Typ.)(Tr+Tf) ms
Color Depth 262K/16.7M 50% NTSC
Backlight 3S9P WLED , 20K hours , No Driver
Mass 154g (Typ.)
Touchscreen Without
Signal Type Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC
Voltage Supply 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Max. Ratings Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C



features



    The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts and efforts have been made to reduce errors, but the parameters are not fully correct. Please refer to the specifications!

At070tn94 Raspberry Pi TFT LCD Display Modules HDMI Capacitive Touch Panel Kit 0



faq



1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.



2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.



3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.



4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.



5.Q:How about the warranty?
A: We supply one year warranty.



6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.



7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
