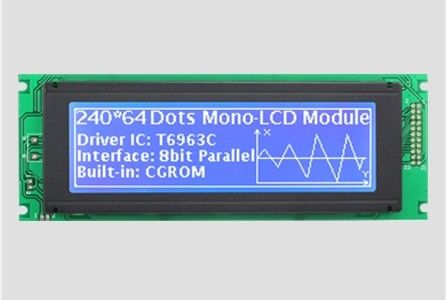

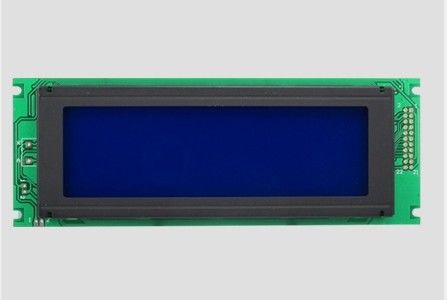

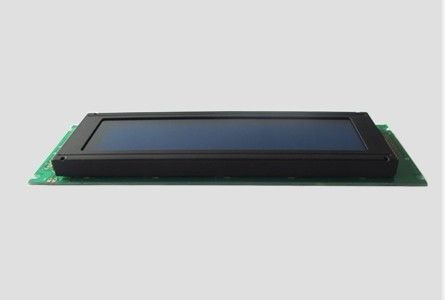

Handheld Medical Instruments Dot Matrix LCD Display 240*64 Graphic LCD Module

Handheld Medical Instruments Dot Matrix LCD Display 240*64 Graphic LCD Module

  • Highlight

    Medical Instruments Dot Matrix LCD Display

    ,

    240*64 Dot Matrix LCD Display

    ,

    Medical Graphic LCD Module ODM

  • Backlighting
    Write
  • Interface
    Parallel Port
  • Display Resolution
    240*64
  • Power Supply Voltage
    5V
  • Viewing Area
    132.0mm X 39.0mm
  • Overall Dimensions
    180.0mm X 65.0mm X 13mm
  • Backlight Colour
    Bluel/Yellow Green / White / Other On Request
  • LCD Type
    Avaible In Reflective / Transflective / Transmissive
  • Place of Origin
    SHEN ZHEN
  • Brand Name
    RISING-SUN
  • Model Number
    LCX24064A
  • Minimum Order Quantity
    1 pcs
  • Price
    Negotiable
  • Packaging Details
    Original packaging,conventional packaging
  • Delivery Time
    3-5 weeks
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    100000 Unit/Units per Month

Handheld Medical Instruments Dot Matrix LCD Display 240*64 Graphic LCD Module

Product Description:

This Graphic LCD Display Module is a monochrome dot matrix LCD that can be used in COG and STN LCD applications. It has an overall dimension of 180.0mm X 65.0mm X 13mm, with a display resolution of 240*64 and the viewpoint is 6 o’clock. The backlight colour comes in bluel/yellow green/white/other on request and has a storage temperature range of -30°C to 80°C. This Graphic LCD Display Module is perfect for a variety of applications and can be used in a range of industrial, automotive, medical and consumer applications.



Features:

  • Product Name: Graphic LCD Display Module
  • Backlighting: Write
  • Display Resolution: 240*64
  • LCD type: FSTN, Monochrome dot matrix LCD
  • Overall Dimensions: 180.0mm X 65.0mm X 13mm
  • Backlight colour: Blue/Yellow Green/White/Other On Request


Technical Parameters:

Parameter Value
Viewpoint 6 O’clock
Display Resolution 240*64
Backlighting Write
Backlight colour Bluel/Yellow Green / White / Other On Request
Operating Temperature -20°C~70°C
Storgae Temperature -30°C~80°C
Interface Parallel Port
Driver IC RA6963A/T6963C Or Equivalent
Power Supply Voltage 5V
Overall Dimensions 180.0mm X 65.0mm X 13mm
Technology Industrial LCD, COG, FSTN, Graphic LCD, OLED Display


Applications:

RISING-SUN LCX24064A Graphic LCD Display Module is a reliable and cost-effective LCD display solution for a wide range of applications. It is made by Shenzhen and features a 240*128, 192*64, 192*64, 132*39 display area with an overall size of 180*65*13 mm. The operating temperature range covers from -20°C to 70°C, making it suitable for use in a wide variety of environments. The display type is available in reflective, transflective and transmissive, providing customers with more choices. The backlight colour is available in bluel, yellow green, white and other colours on request, showcasing its flexibility and versatility. With its excellent performance, RISING-SUN LCX24064A Graphic LCD Display Module is the ideal choice for many applications.



Customization:

Customize Graphic LCD Display Module - RISING-SUN LCX24064A

This Graphic LCD Display Module from RISING-SUN can be customized to your specific needs. It has a 192x64 resolution and COG LCD technology with a parallel port interface. The overall dimensions are 180.0mm X 65.0mm X 13mm and it has write backlighting. The storage temperature range is -30°C~80°C.



Handheld Medical Instruments Dot Matrix LCD Display 240*64 Graphic LCD Module 0

Support and Services:

Graphic LCD Display Module provides technical support and services to ensure that customers have a pleasant shopping experience.

We offer professional technical support to help customers troubleshoot their product and find solutions to any issues they may have. Our technical support team is available to answer any questions customers may have and guide them through the set-up process. We also provide software and firmware updates to ensure that the product is up-to-date.

We offer a range of services to ensure our customers get the most out of their Graphic LCD Display Module. These include installation services, repair and maintenance services, and product customization services. Our service technicians are experienced and knowledgeable about the product, allowing us to provide the best possible service to our customers.

At Graphic LCD Display Module, we strive to provide our customers with the highest quality products and services. We are committed to providing exceptional customer service and technical support to ensure that our customers have a positive experience with their purchase.



FAQ:

Q: What is the Brand Name of this Graphic LCD Display Module?
A: The Brand Name of this Graphic LCD Display Module is RISING-SUN.
Q: What is the Model Number of this Graphic LCD Display Module?
A: The Model Number of this Graphic LCD Display Module is LCX24064A.
Q: Where is this Graphic LCD Display Module from?
A: This Graphic LCD Display Module is from SHEN ZHEN.
Q: What are the features of this Graphic LCD Display Module?
A: This Graphic LCD Display Module is designed with the features of wide temperature range, high resolution, wide viewing angle and long lifetime.
Q: What is the application of this Graphic LCD Display Module?
A: This Graphic LCD Display Module is widely used in the fields of industrial control, medical equipment, digital products and other areas.

Products are uploaded in bulk, please contact our company for detailed detail parameters, subject to the accurate specification.
